Atlas Equipment Platinum PVL14 ALI Certified 14,000 lb. Capacity 4-Post Lift

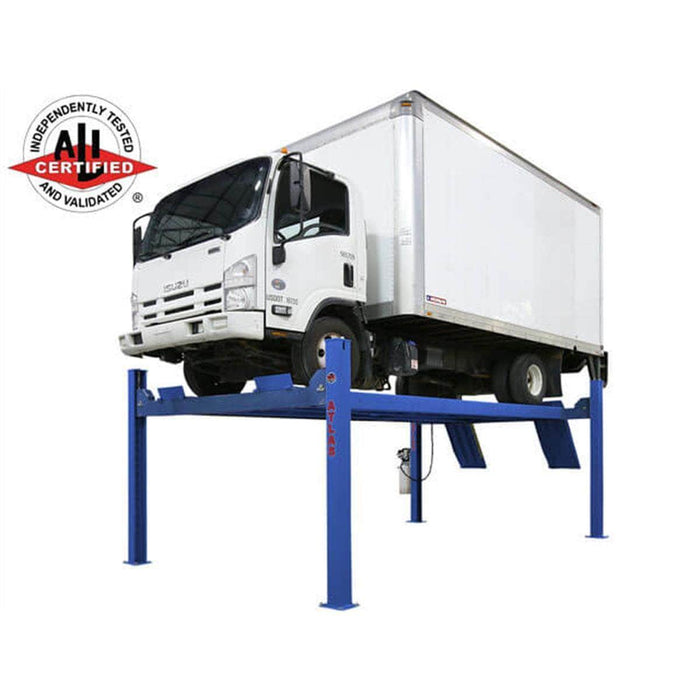

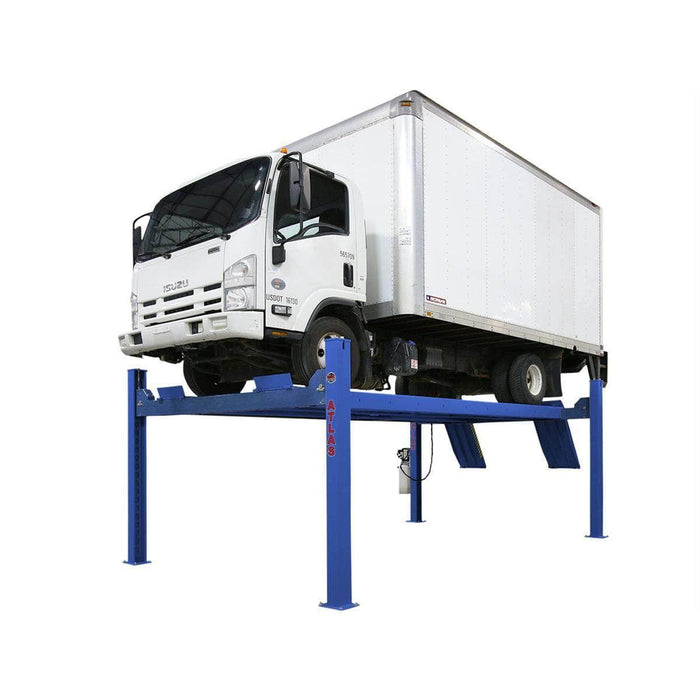

The Atlas® Platinum PVL14 is a commercial-grade, heavy-duty four-post lift designed with the professional shop in mind. With a 14,000 lb. capacity, it can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium-duty commercial vehicles. ALI certified and featuring a robust cable system, the PVL14 offers superior reliability and performance.

Unlike older chain lifts, which are difficult to level and have exposed hydraulic cylinders that can cause door dings, the Atlas® Platinum PVL14 utilizes a high-strength cable system with an under-runway oversized hydraulic cylinder. This lift also includes “tracks” between the runways to support a rolling bridge jack, such as the Atlas® Platinum RJ7000 (sold separately).

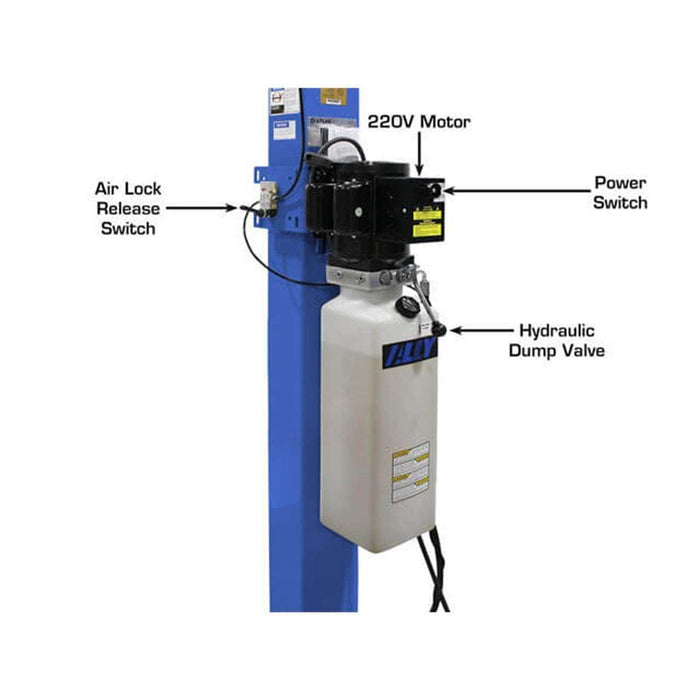

The lift is powered by the premium ALLY Hydraulic AL2650 power unit, certified by MET Laboratories Inc. for electrical compliance in the U.S. and Canada. Featuring extra heavy-duty armatures and more motor windings with increased silver metal content, this power unit reduces heat generation while maintaining constant torque. The AL2650 carries an industry-leading two-year limited warranty.

Features & Benefits

  • ALI Certified for professional-grade safety
  • 14,000 lb. capacity suitable for a wide range of vehicles

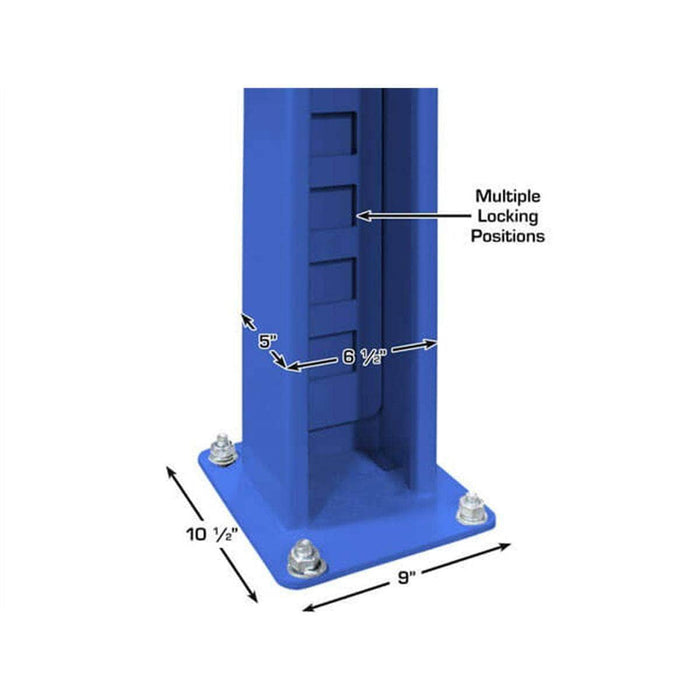

  • Adjustable lock ladder design for customizable safety positions
  • Heavy-duty, commercial-grade build for durability
  • Higher quality powder coat finish for increased longevity
  • Air-operated single-point lock release (external air supply required)
  • Double-lock safety system

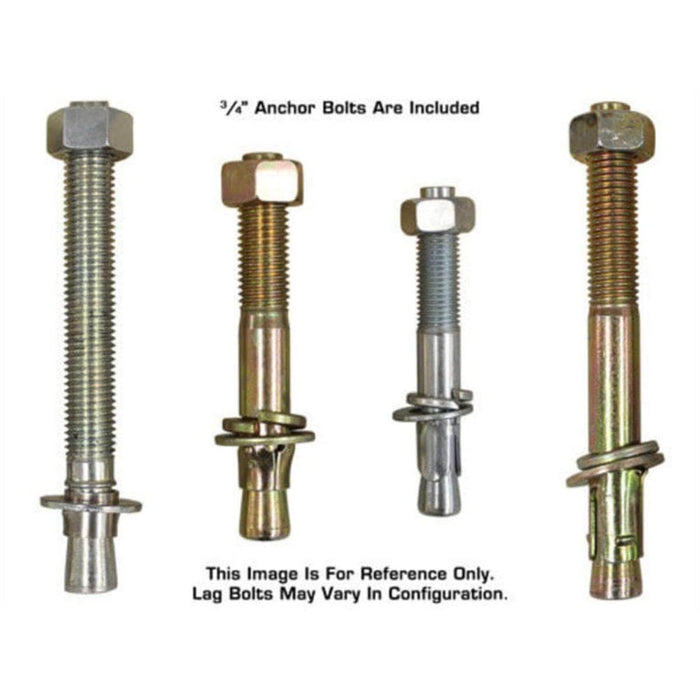

  • Includes steel approach ramps and mounting hardware
  • Standard with premium ALLY power unit (220V, single-phase operation, requires a 30A breaker)
  • 5-year structural warranty, 2-year hydraulic and power unit warranty

Specifications

  • Capacity: 14,000 lb.

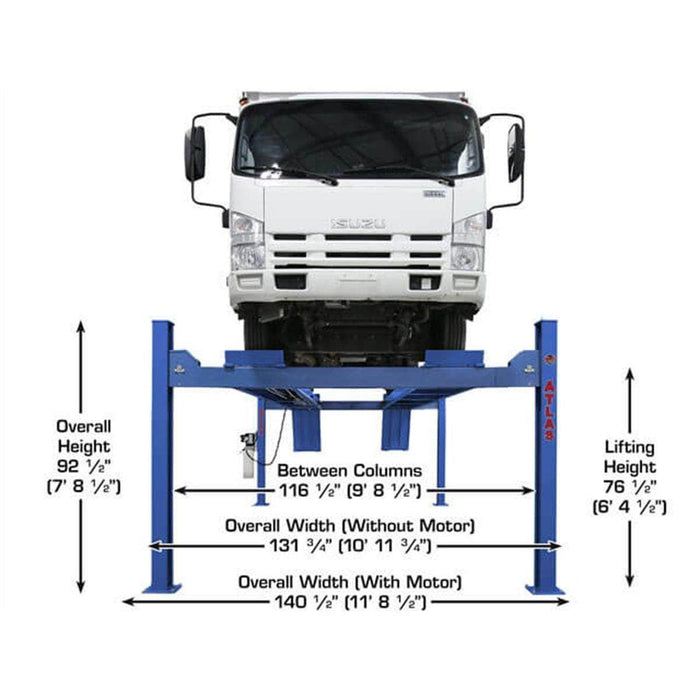

  • Lifting Height: 76 1/2" (6' 4 1/2")
  • Overall Width (Without Motor): 131 3/4" (10' 11 3/4")
  • Overall Width (With Motor): 140 1/2" (11' 8 1/2")
  • Overall Length (With Approach Ramp): 251 1/2" (20' 11 1/2")
  • Length Between Columns: 196" (16' 4")
  • Runway Length: 205 1/2" (17' 1 1/2")
  • Runway Width: 20"
  • Runway Thickness: 7"
  • Width Between Runways: 42 3/4" (with rail 39 1/4")
  • Outside Runway to Outside Runway: 83 1/8" (6' 11 1/8")
  • Clearance Under Runways: 69 1/2" (5' 9 1/2")
  • Clearance Between Columns: 116 3/8" (9' 8 3/8")
  • Height of Columns: 92 1/2" (7' 8 1/2")
  • Maximum Wheel Base: 195" (16' 3")
  • Drive-Thru Width: 94 1/2" (7' 10 1/2")
  • Air Requirement: 85-115 PSI (External Air Supply Required)
  • Motor/Electrical Requirement: 220V single-phase (30A breaker recommended)
  • Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

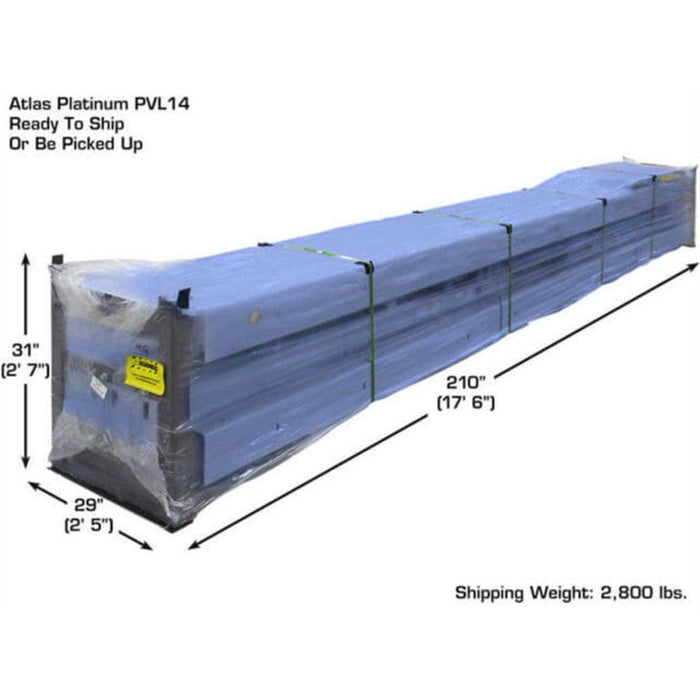

  • Shipping Weight: 2,800 lbs.
  • Concrete Requirement: Minimum of 6" thickness with a 3,000 PSI rating
