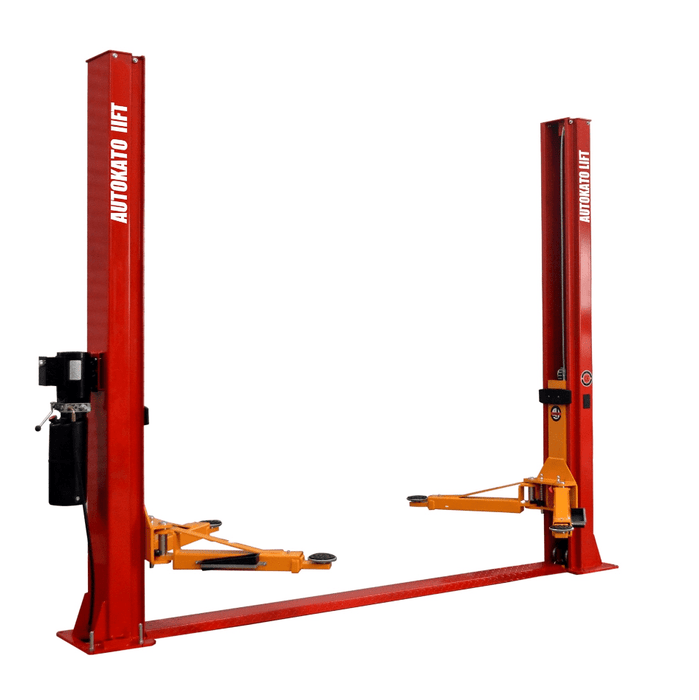

Katool KT-H100 Two Post Vehicle Lift 10,000lbs

The Katool KT-H100 Two Post Vehicle Lift is designed for professional automotive workshops and garages. With a robust 10,000lbs lifting capacity, this lift provides reliable performance and safety for lifting a wide variety of vehicles. Certified and CE Approved, it exceeds safety standards and ensures operational efficiency for heavy-duty use.

Equipped with dual hydraulic chain-drive cylinders, a symmetric arm design, and manual safety release on both sides, the KT-H100 offers versatility and user-friendly functionality. Its durable construction and top-level hydraulic system make it a must-have for any professional garage.

Product Features

  • 10,000lbs lifting capacity
  • CE Approved and Certified to meet safety standards
  • Manual safety release from both sides
  • Symmetric arm design for added stability
  • Base plate design for low-ceiling garages
  • Dual Hydraulic Chain-Drive Cylinders for efficient lifting
  • Rubber pad door opening protection
  • Comes with extension support adaptor sets (+30mm and +120mm)
  • Feet-protection safety guardrails with built-in tool box
  • Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

Specifications

  • Lifting Capacity: 10,000lbs / 4500KG
  • Max. Lifting Height: 70.75" / 1800mm
  • Min. Height: 4.25" / 110mm
  • Height Overall: 110.25" / 2800mm
  • Width Overall: 142.25" / 3614mm
  • Outside Column: 128" / 3250mm
  • Inside Column: 110.25" / 2800mm
  • Drive-Thru Clearance: 94.5" / 2400mm
  • Front Arm Reach (Min): 30.75" / 780mm (2 stages)
  • Front Arm Reach (Max): 50.5" / 1280mm (2 stages)
  • Rear Arm Reach (Min): 30.75" / 780mm (2 stages)
  • Rear Arm Reach (Max): 50.5" / 1280mm (2 stages)
  • Motor: 220VAC/60HZ/1PH/2.2KW
  • Net Weight: 1256lbs / 570KG
Important: Concrete thickness must be at least 5.9” (150mm) with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
