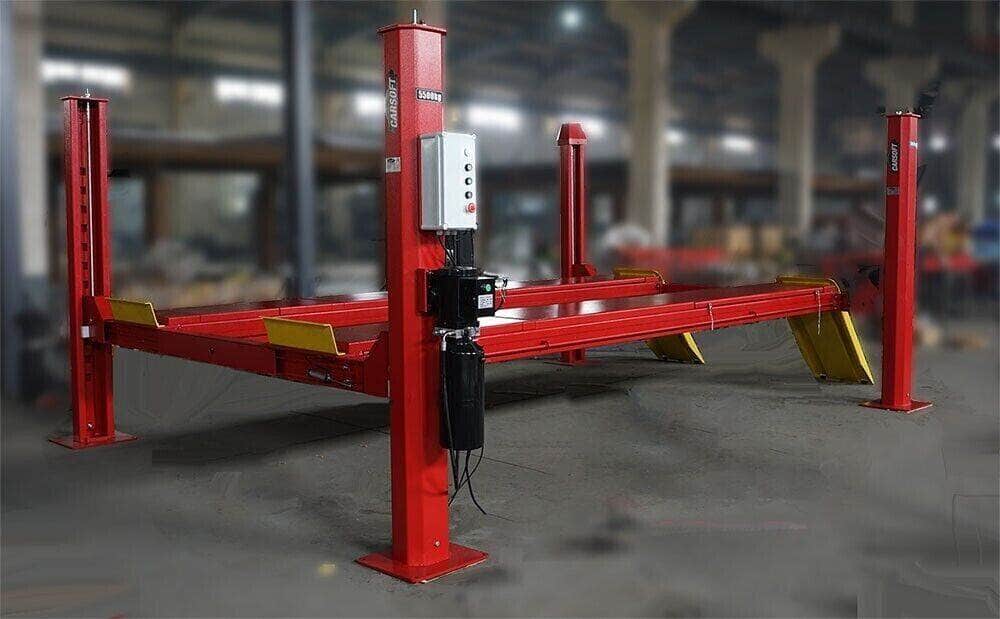

Katool KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included)

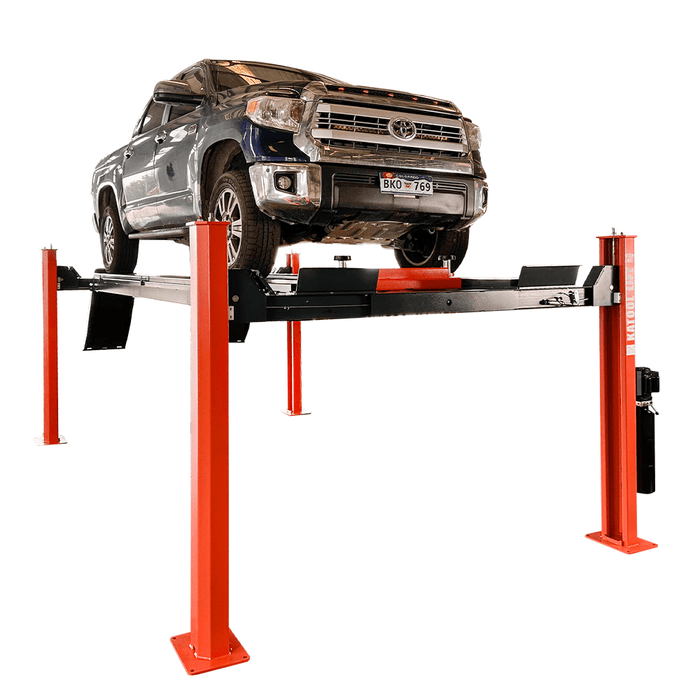

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift is a premium solution for lifting and aligning heavy vehicles. With an impressive lifting capacity of 15,000 lbs, this CE-approved lift is designed for maximum safety, efficiency, and durability, making it the perfect choice for professional automotive workshops.

Equipped with a spring-loaded safety lock system, adjustable height positions, and non-skid diamond-textured ramps, the KT-4H150 ensures safe and precise operation. Additionally, it comes with a 6,000 lbs rolling jack, enhancing its versatility for all types of vehicle alignment needs.

Product Features

  • 15,000 lbs lifting capacity
  • CE Approved and Certified: 115% dynamic loading and 150% static loading capacity tested

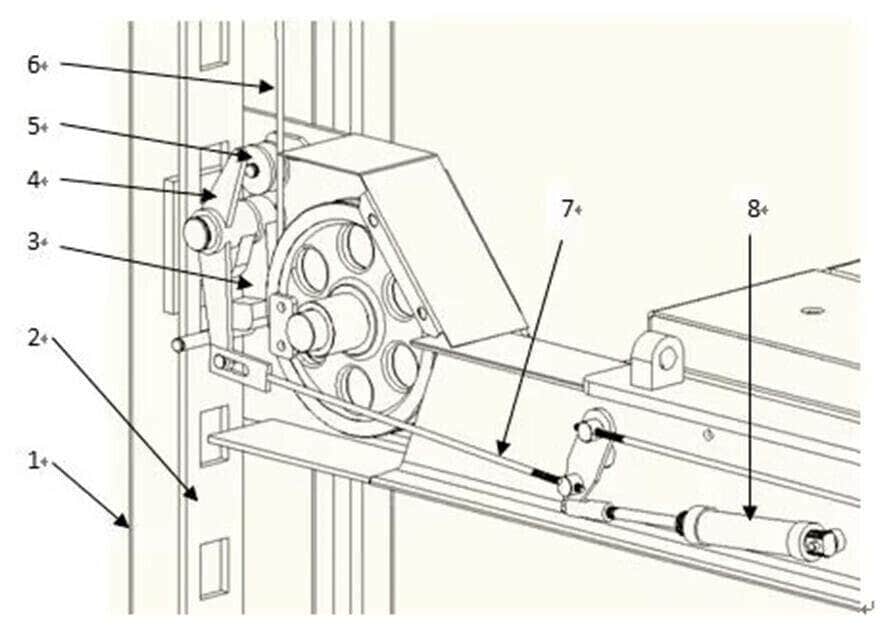

  • Spring-loaded safety locks that automatically engage during lifting
  • Secondary lock system acts as a slack-cable device for added safety
  • Adjustable height locking positions

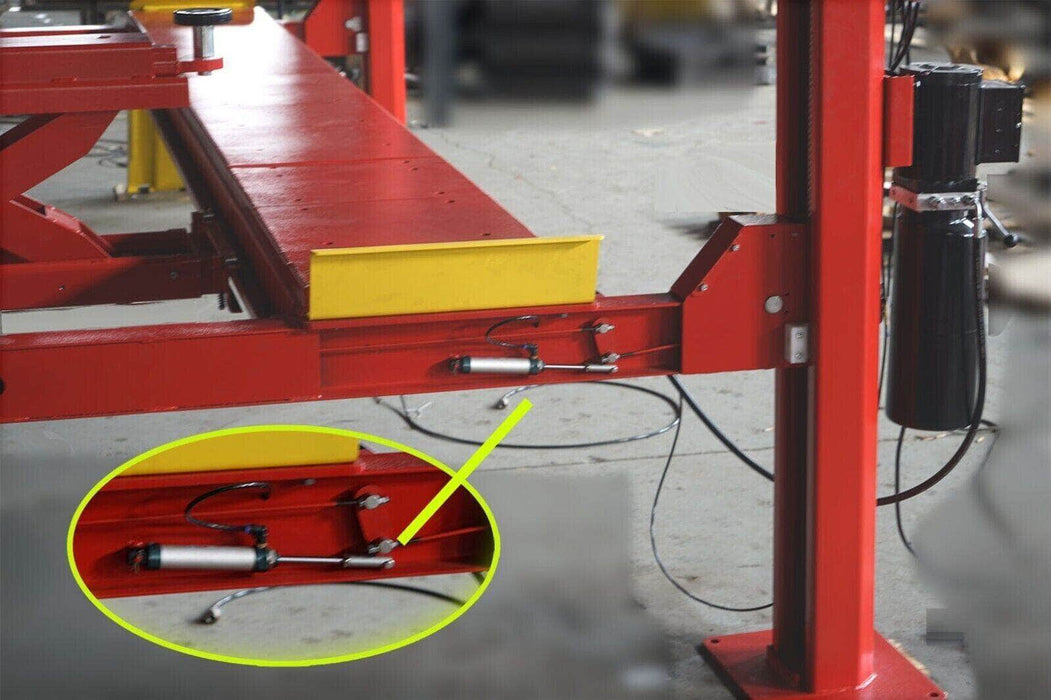

  • Push-button pneumatic safety lock control
  • Power side column installable on both sides, front, or rear

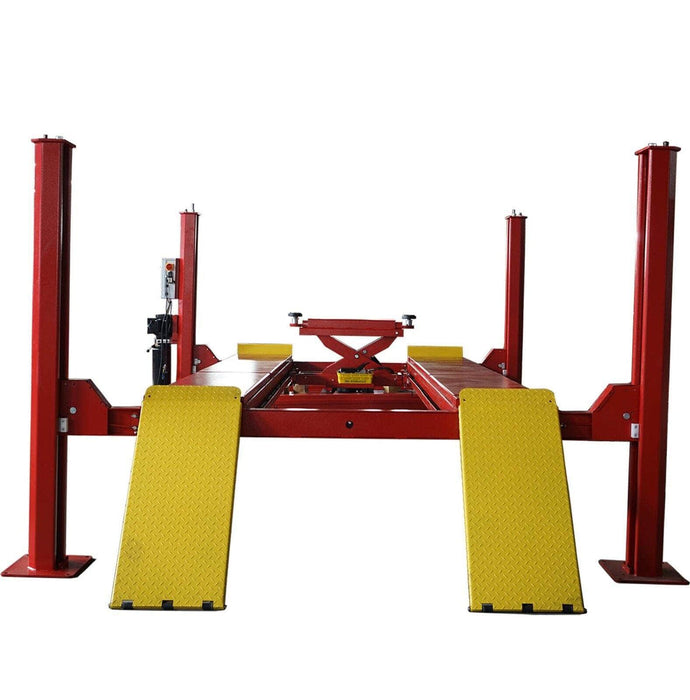

  • Non-skid diamond texture ramps and non-slip coated runways

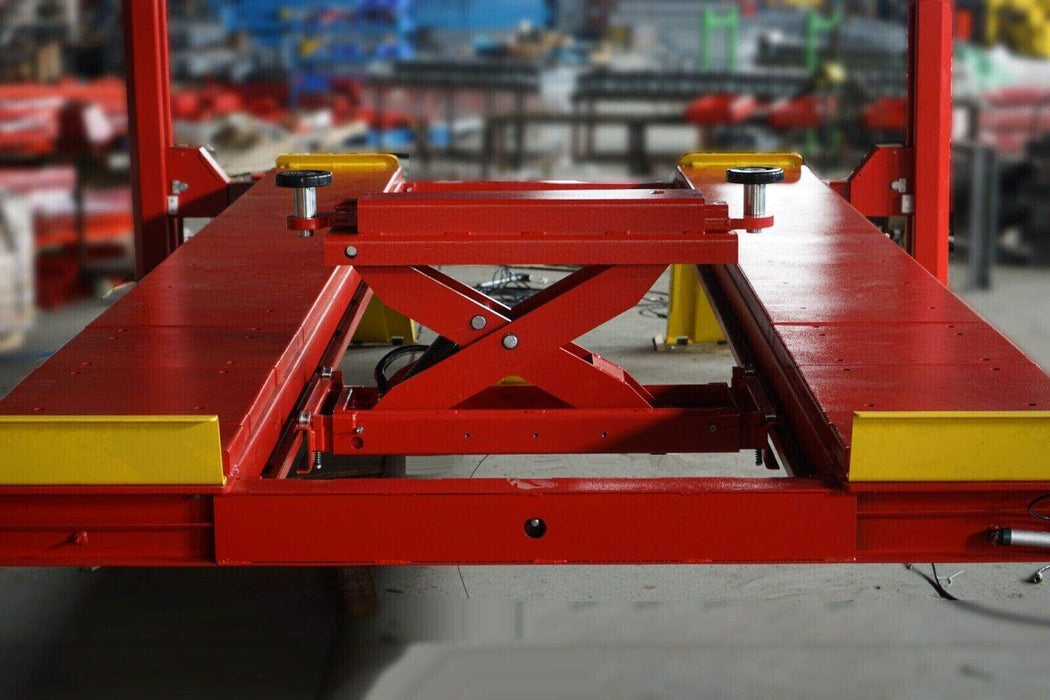

  • Includes one 6,000 lbs rolling jack

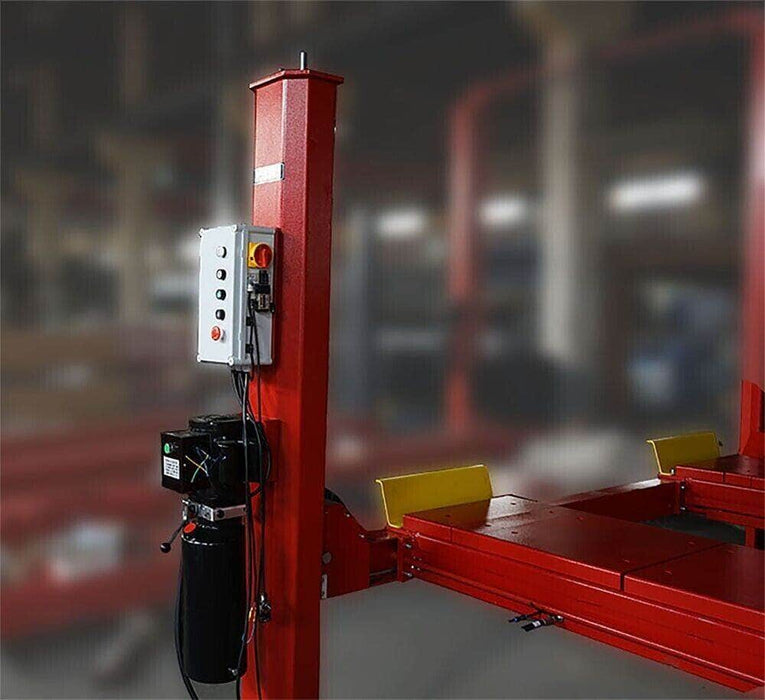

  • High-quality hydraulic system with a 3KW motor (220V/60HZ/1PH or 110V/60HZ/1PH options)

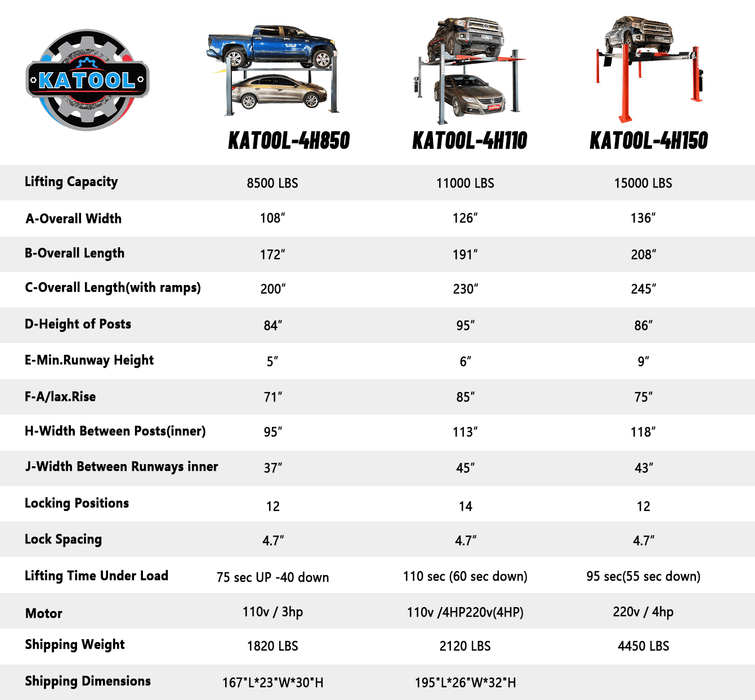

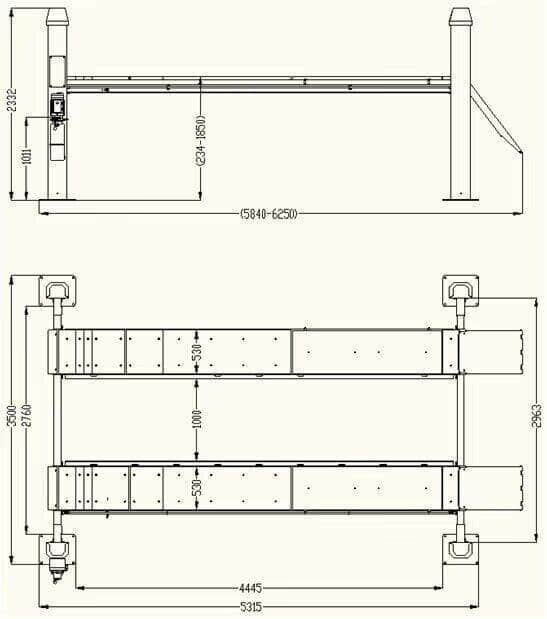

Specifications

  • Lifting Capacity: 15,000 lbs
  • Max. Lifting Height: 75" / 1905mm
  • Lifting Time: 95s Up / 55s Down
  • Height of Posts: 86" / 2184mm
  • Width Overall: 136" / 3454mm
  • Length Overall: 208" / 5283mm
  • Overall Length (with ramps): 245" / 6223mm
  • Min. Runway Height: 9" / 228mm
  • Motor: 220VAC/4PH
  • Net Weight: 4450 lbs
Important: Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Katool Warranty Policy

Katool stands behind the quality of its products with a comprehensive warranty policy to ensure your satisfaction and peace of mind. Here's everything you need to know about their coverage.

Warranty Coverage

  • Katool offers a limited one-year (12 months) warranty on all parts and product defects, free of charge.
  • Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
  • An optional two-year extended warranty is available for any Katool or M&E automotive equipment.

Warranty Conditions

  • Warranty Period: Claims must be submitted within the warranty period.
  • Eligibility: Warranty is non-transferable and requires proof of purchase from our company or an authorized vendor.
  • Replacement Parts: Provided at no cost, including free shipping. Labor is not included.
  • Approval Process: All claims are subject to review by Katool's warranty/service department. Photos or videos of defects may be requested.
Note: Do not disassemble equipment before the issue is reviewed. Products outside the warranty period or conditions are not covered, and replacement costs will apply.
