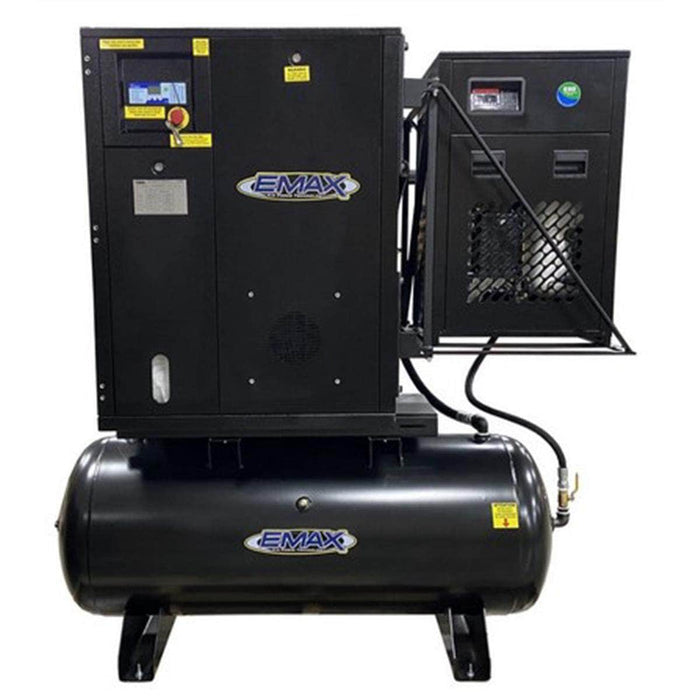

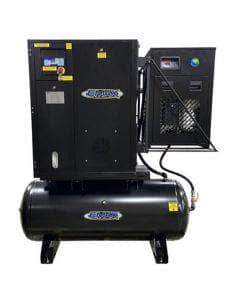

Emax Compressor 5HP 3PH Industrial Rotary Screw Compressor – 80 Gal Tank Mount w/ Air Dryer

The EMAX Compressors 5HP Industrial Rotary Screw series is designed to provide long-lasting, high-performance operation with a 60,000-hour pump life expectancy. Engineered for industrial applications, this rotary screw compressor features a soundproof cabinet that significantly reduces operational noise for a quieter working environment.

Equipped with a Logik 9 smart controller, this unit allows users to set pressures, alarms, and schedules with ease. The multi-unit control function enables seamless integration of multiple rotary units in a master/slave operation for optimized performance.

Powered by a three-phase 208/230/460V motor operating at 1750 RPM, this compressor delivers 19.42 CFM @ 100 PSI with a maximum pressure of 145 PSI. It includes MANN Filters for superior air filtration, 8000-hour oil for extended service intervals, and a belt-driven system for long-term durability.

This unit is mounted on an 80-gallon horizontal receiving tank and features a patented swingarm-mounted air dryer for a compact footprint and easy maintenance.

Key Features:

• Delivers 19.42 CFM @ 100 PSI for consistent airflow.
• Maximum pressure rating of 145 PSI.

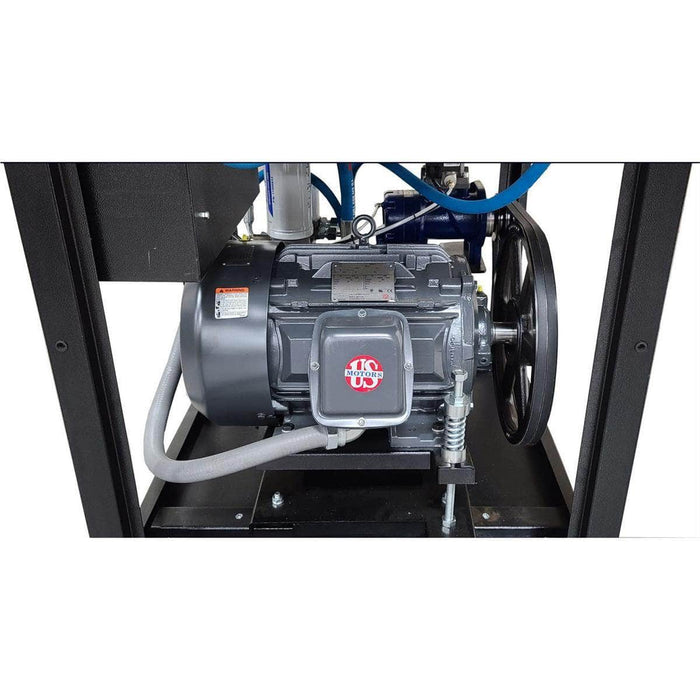

• Three-phase 208/230/460V motor operating at 1750 RPM.
• 80-gallon horizontal tank with a 3/4-inch outlet.
• Includes Logik 9 smart controller for automated monitoring and multi-unit control.

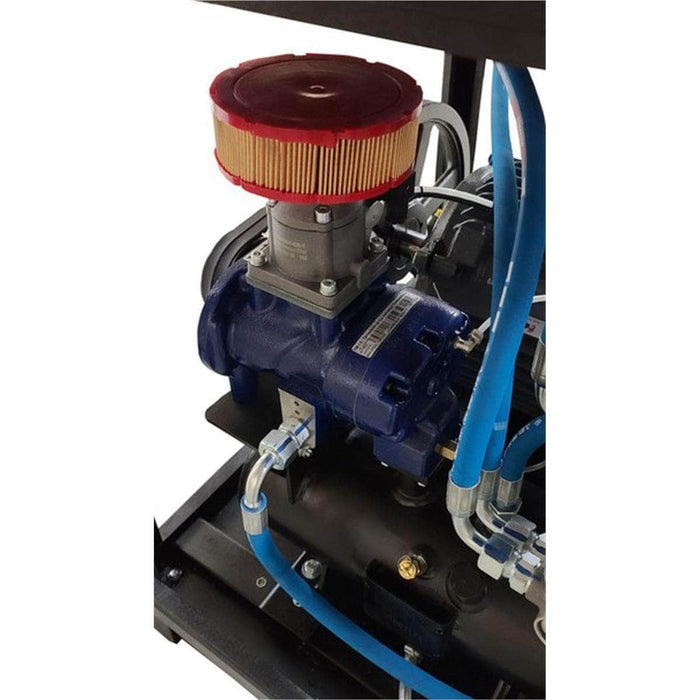

• Utilizes MANN Filters for enhanced air filtration.
• Equipped with a belt-driven system for reliable performance.
• Includes a patented swingarm-mounted air dryer for moisture removal.
• UL and ASME certified for safety and compliance.
