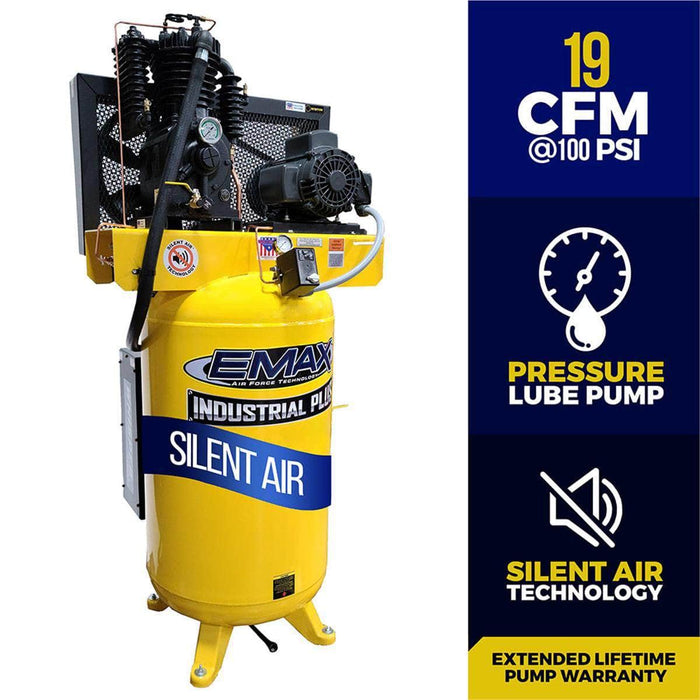

Emax Compressor 5HP 1PH 80-Gallon Vertical Silent Air Compressor w/ Air Silencer & Pressure Lube Pump

The EMAX ESP05V080I1 5HP 80-Gallon Vertical Silent Air Compressor is engineered for industrial and commercial use, designed to deliver up to 70,000 hours of operation with proper maintenance. Featuring a patented pressure lubricated reciprocating pump, this unit ensures high performance and durability.

With a maximum pressure of 175 PSI and an output of 19 CFM @ 100 PSI, this compressor is ideal for demanding applications. The included Whisper100 silent air system significantly reduces noise levels by 35%, making it one of the quietest air compressors on the market.

Designed for convenience and longevity, the unit includes automatic tank drain, belt tensioner, dual timer, and continuous run functionality. The solid cast iron, two-stage pump ensures exceptional durability, while the powder-coated ASME-rated tank is built for strength and longevity.

Key Features:

  • 19 CFM @ 100 PSI for reliable airflow.
  • 175 PSI maximum pressure for high-demand applications.
  • Whisper100 silent air system reduces noise by 35%.
  • Solid cast iron, two-stage pump with 70,000-hour rated lifespan.
  • Automatic tank drain with dual timer for easy maintenance.
  • Belt-driven system for efficient operation.
  • Continuous run & automatic start/stop functionality.
  • 80-gallon vertical tank with 3/4-inch outlet.
  • UL, CSA, ASME, and ETL certified for safety compliance.

Video Overview:

Specifications

  • Brand: Emax Compressor
  • Model: ESP05V080I1
  • UPC: 815002013121
  • Weight: 806 lbs
  • CFM @ 100 PSI: 19
  • Compressor Stage: Two
  • Pump RPM: 800
  • Pump Material: Solid Cast Iron
  • Pump Model: APP2I0524TP
  • Dimensions (LxWxH): 42" x 34" x 75"
  • Motor RPM: 1750
  • Motor Phase: Single
  • Voltage: 230V
  • Tank Size: 80 Gallon
  • Tank Orientation: Vertical
  • Tank Outlet Size: 3/4 inch
  • Tank Drain: Timed Automatic
  • Certifications: UL, CSA, ASME, ETL
  • Running AMP: 24
  • Recommended Breaker: 40 AMP
  • Max PSI: 175
  • Oil Capacity: 2 Quarts
  • Drive Type: Belt Driven
