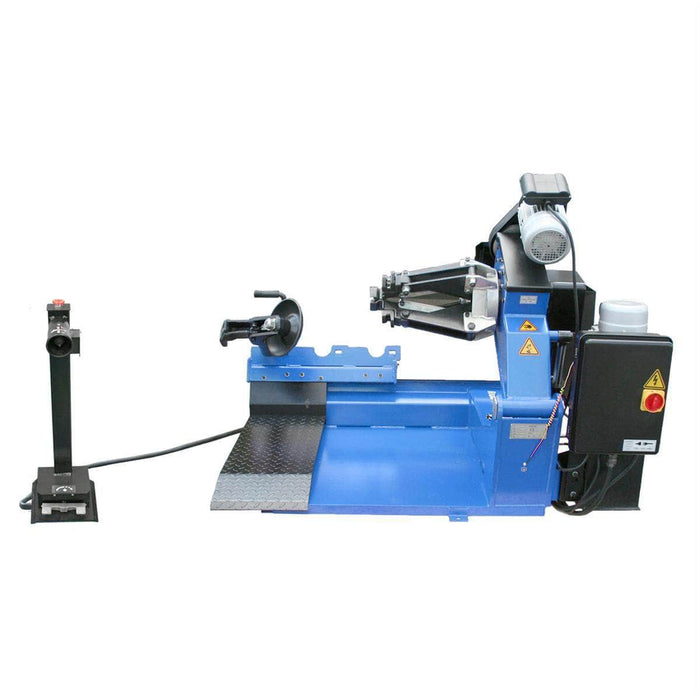

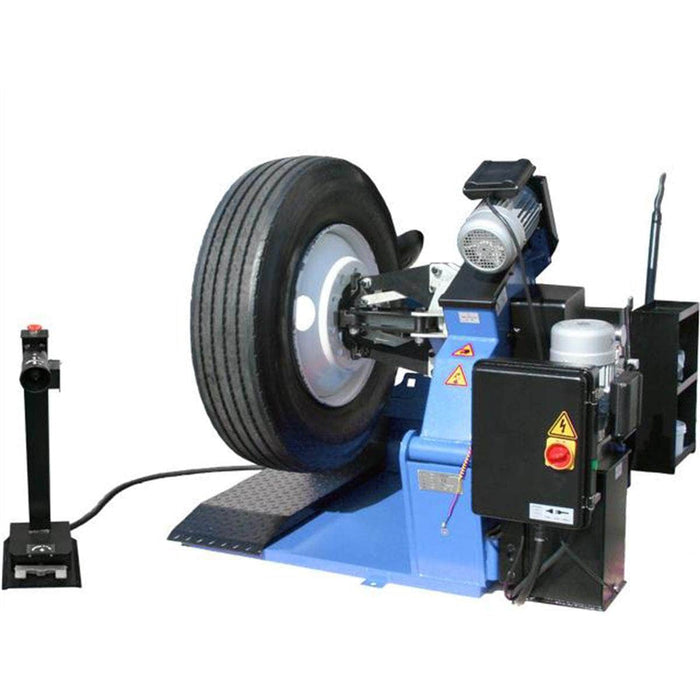

Atlas Equipment TTC301 Truck Tire Changer

This Heavy Duty Atlas® TTC301 truck tire changer is designed and engineered to handle rim sizes from 13 inches to 27 inches and tire diameters in excess of 63 inches. The Atlas® TTC301 truck tire changer can easily accommodate tires with a maximum width of 30.5 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

The Atlas® TTC301 truck tire changer is designed for high-volume tire shops that demand dependability and durability in their equipment. The TTC301 is the perfect choice for the large truck tire center or large farm that does high-volume truck tire work on standard over-the-road wheel assemblies.

Features & Benefits

  • Standard Truck Tire Changer
  • Handles Rims from 13" to 27" and Tire Diameters in Excess of 63"
  • Accommodates Tires with a Max Width of up to 30 1/2"
  • Bead Breaker
  • Mount/Demount Head
  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 Different Rim Locking Positions
  • Wired Mobile Control Unit
  • Heavy Duty Tire Tool Included
  • Rim Clamps for Steel and Alloy Wheels Included
  • Alloy Rim Adapter Set w/ Plastic Inserts Included
  • 1-Year Parts Only Warranty
  • This Part Number FREIGHT PREPAID

Specifications

Atlas® TTC301 Specifications

  • Rim Clamping Range: 13" - 27"
  • Minimum Clamping Size w/ Alloy Adapters: 6 3/8"
  • Max Wheel Weight: 3,300 lbs.
  • Max Tire Diameter: 63" (5' 3")
  • Max Tire Width: 30 1/2" (2' 6 1/2")
  • Clamping Power: 6,614 lbs
  • Operating Pressure: 0 - 1885 PSI
  • Acoustic Pressure: 70 dBA
  • Bead Breaker Force: 4,112 lbs.
  • Tool Arm Positioning: Manual
  • Tool Head Positioning: Manual
  • Construction: Single Piece Frame w/ Solid Floor Plate
  • Hydraulic Motor Power: 2 HP, 220V (+/- 5% 209-231 volts) 1-phase, 30 amp breaker required
  • Chuck Motor Power: 3 HP, 220V (+/- 5% 209-231 volts) 1-phase, 30 amp breaker required
  • Shipping Weight: 1,390 lbs.
