Atlas Platinum PVL15 ALI Certified Commercial Overhead 15,000 lb. Capacity 2-Post Lift

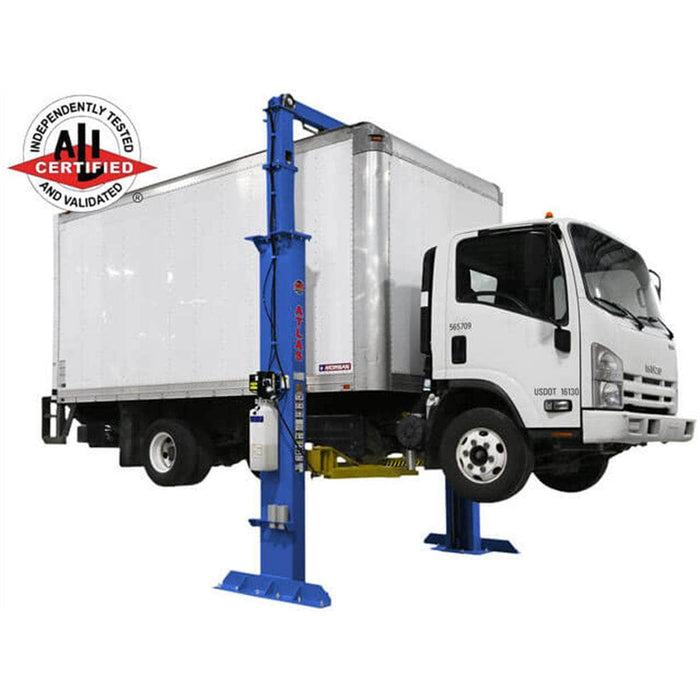

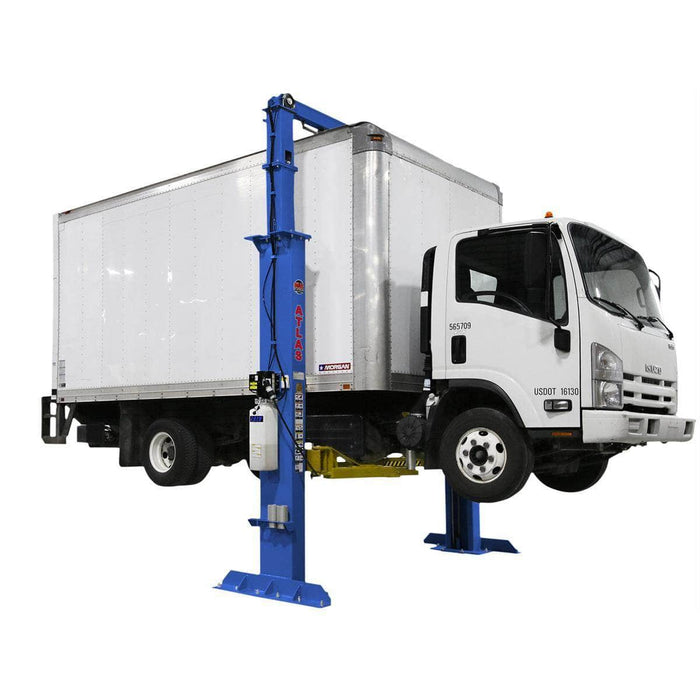

The Atlas® Platinum PVL15 is an ALI CERTIFIED, commercial-grade, 15,000 lb. capacity overhead two-post lift designed for professional service centers. Built to handle long wheelbase trucks and service vehicles, this lift ensures durability, safety, and reliability.

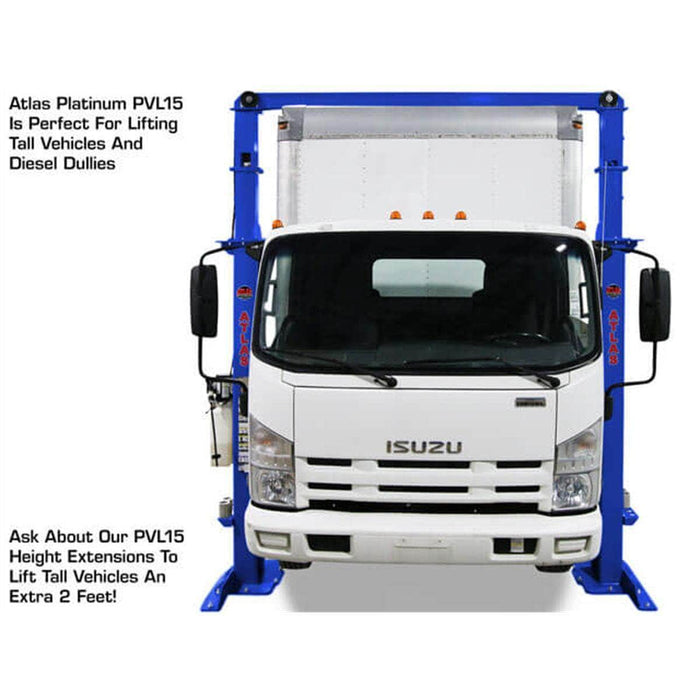

With an overall height of 174 1/2 inches (14' 6 1/2"), the PVL15 can be extended by an extra 2 feet using the optional Height Extension Kit, allowing for greater vehicle accommodation.

Features & Benefits

  • ALI Certified for professional-grade safety and reliability
  • 15,000 lb. lifting capacity for commercial-grade applications
  • Extra-tall and extra-wide design for accommodating larger vehicles
  • Padded carriages for enhanced vehicle protection

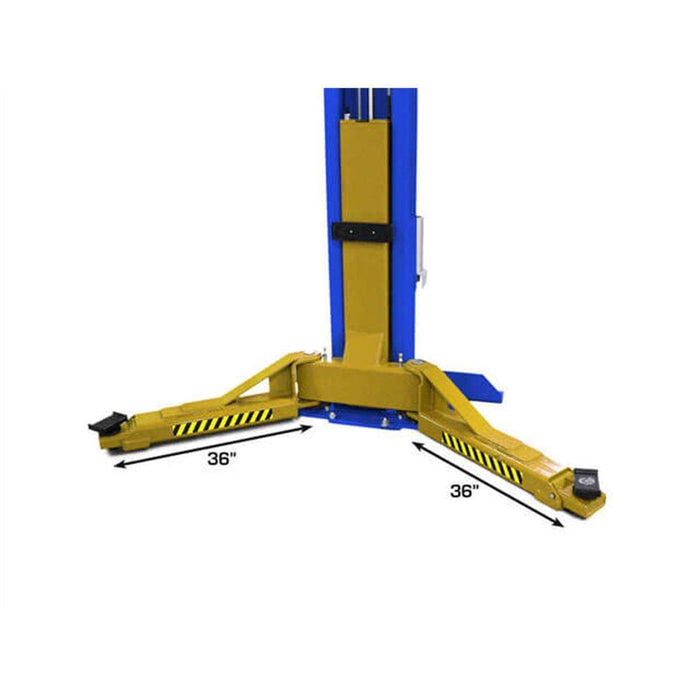

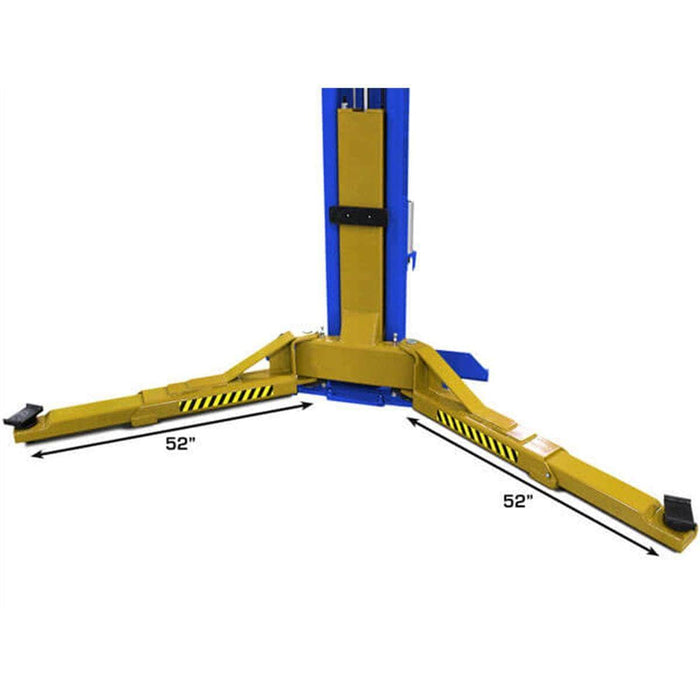

  • Symmetric arms for versatile lifting options
  • Professional-grade arm lock restraint system for safety

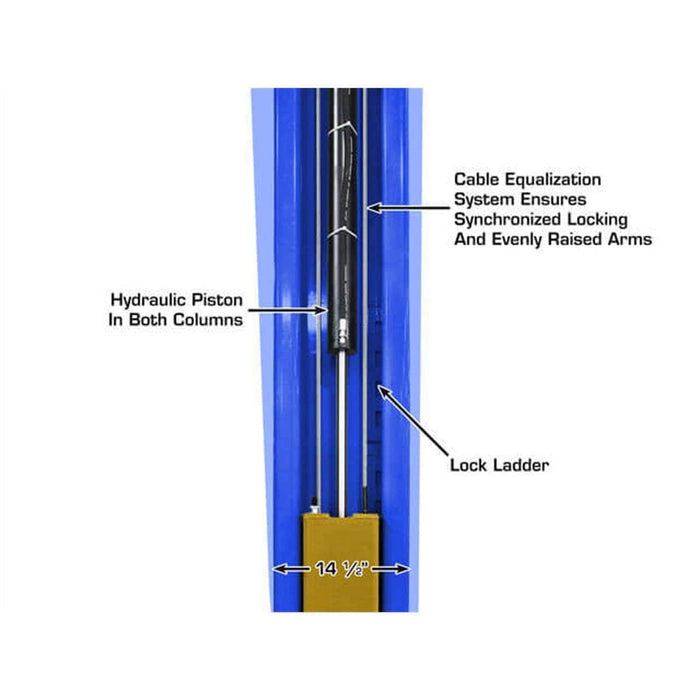

  • Dual direct-drive hydraulic cylinders for smooth and efficient lifting
  • Heavy-duty 3/8" equalization cables for added durability

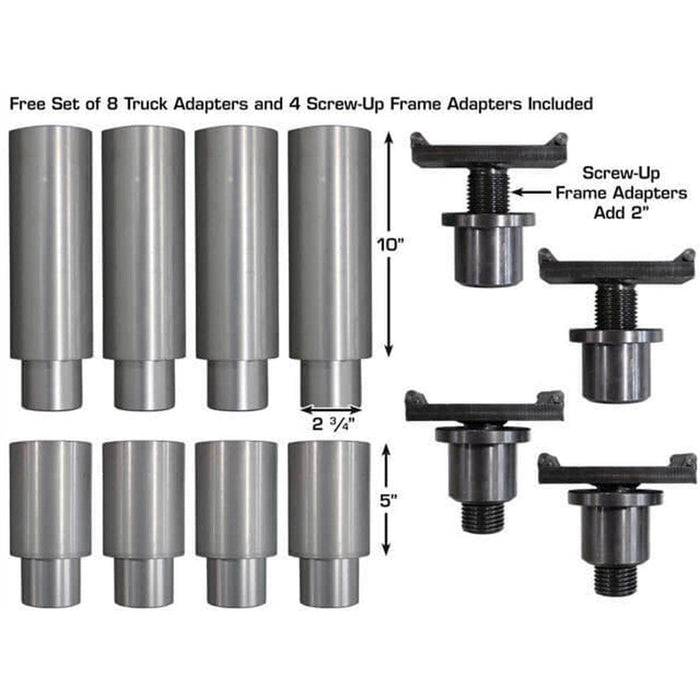

  • Includes free 8-piece truck adapter set and 4 screw-up frame adapters
  • Premium ALLY power unit for consistent and efficient performance
  • Includes all necessary mounting hardware
  • 5-year structural warranty, 2-year hydraulic and power unit warranty

Specifications

  • Capacity: 15,000 lbs.

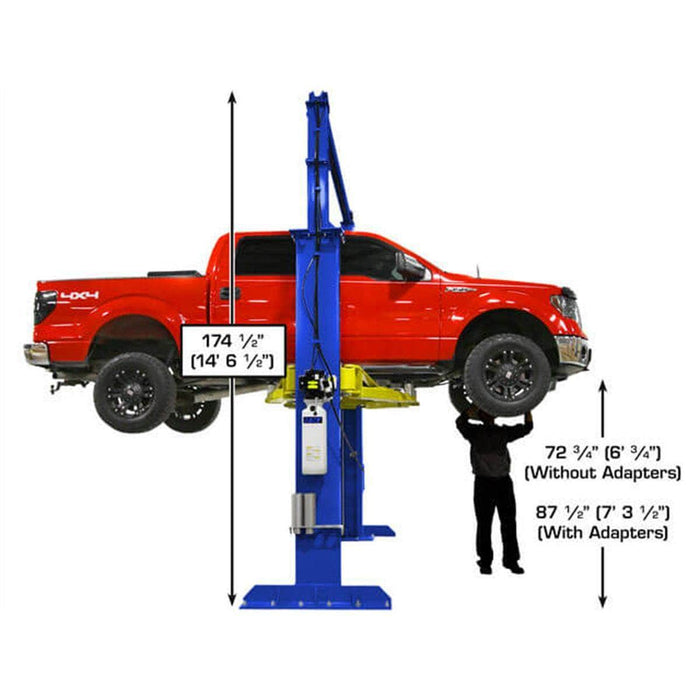

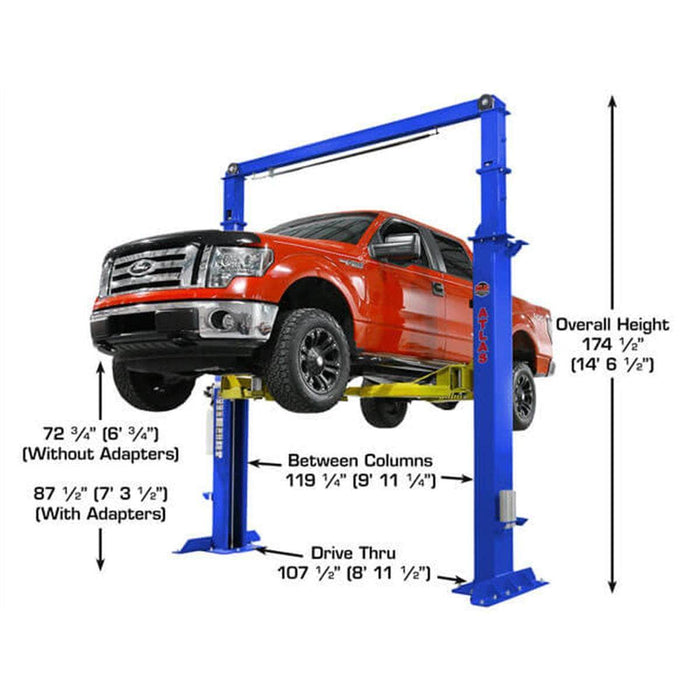

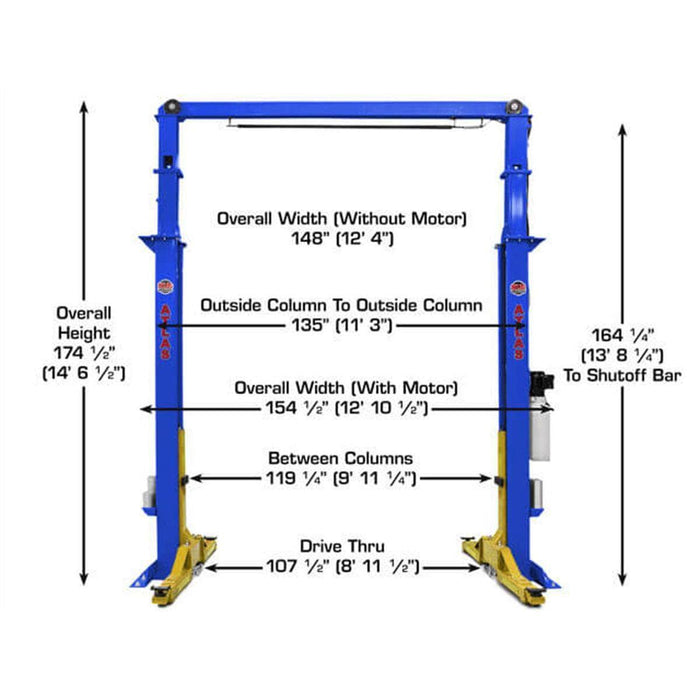

  • Overall Height: 174 1/2" (14' 6 1/2")
  • Overall Floor Width: 148" (12' 4")
  • Outside Column to Outside Column: 135" (11' 3")
  • Maximum Lift Height (Without Adapters): 72 3/4"
  • Maximum Lift Height (With Adapters): 87 1/2"
  • Minimum Arm Height: 6"
  • Inside Column Width: 119 1/4” (9' 11 1/4”)
  • Drive-Thru Width: 107 1/2” (8' 11 1/2”)
  • Column Size: 8" x 14 1/2"
  • Column Steel Thickness: 8mm

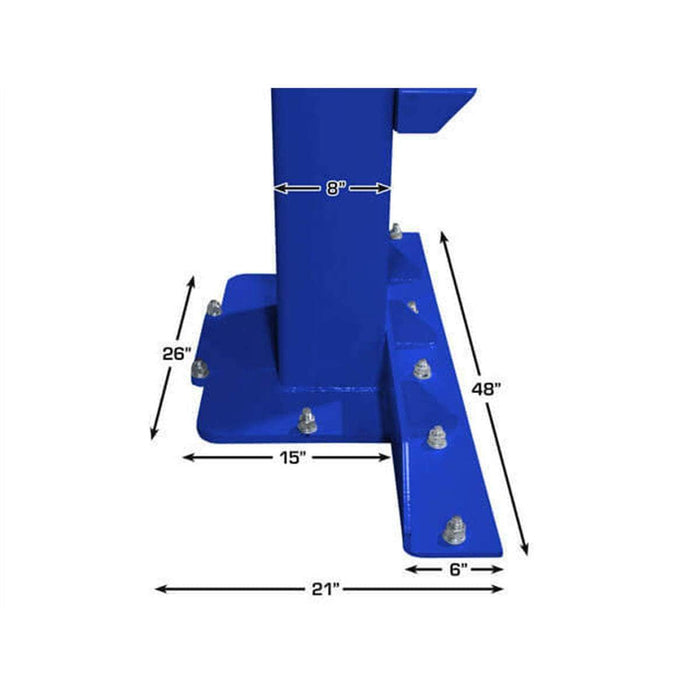

  • Base of Lift: 21" x 48"
  • Motor/Electrical Requirement: 220V / Single-phase (30A breaker required)
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)

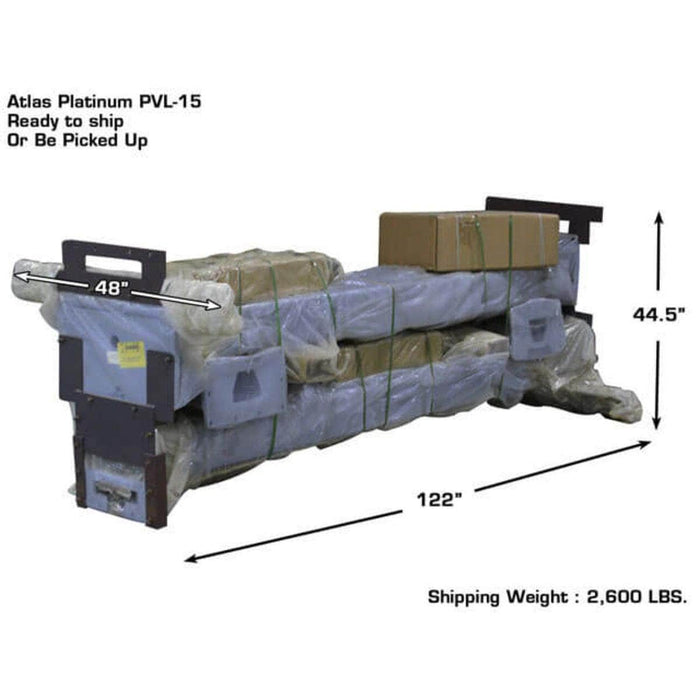

  • Shipping Weight: 2,600 lbs.
  • Adapter Heights: 4 Each 5”, 10”
  • Arm Hole/Adapter Peg Size: 2.75”
  • Concrete Requirement: Minimum 6" of concrete with a 3000 psi rating
