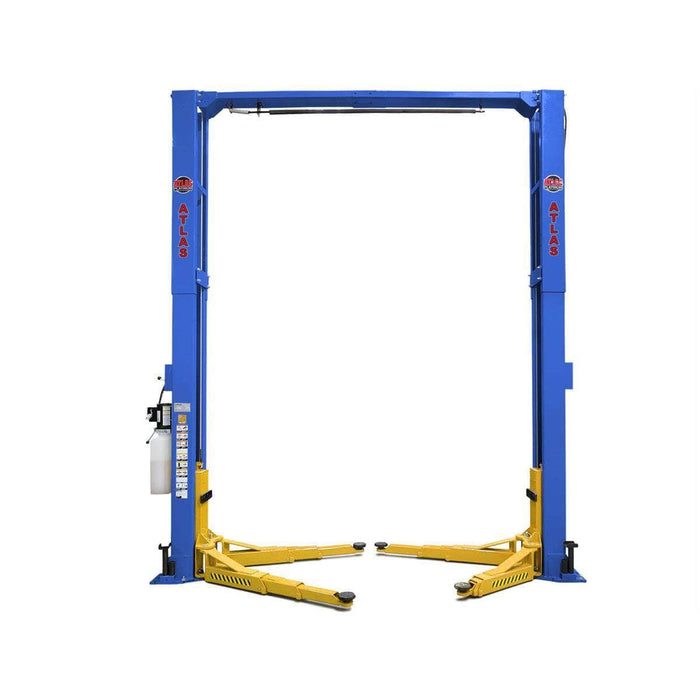

Atlas Equipment Platinum PVL12 ALI Certified 12,000 lb. Capacity 2-Post Lift

The Atlas® Platinum PVL12 is an ALI Certified two-post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheelbase trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.

The Platinum PVL12 is also ALI certified and backed by one of the industry’s best warranties for added peace of mind.

Features & Benefits

  • ALI Certified for professional-grade reliability
  • 12,000 lb. lifting capacity for heavy-duty commercial use
  • Extra-tall and extra-wide design for accommodating large vehicles
  • Adjustable height settings for versatile installation
  • 3-Stage symmetric arms for stable and secure lifting
  • Automatic arm restraints for enhanced safety
  • Padded shut-off bar to prevent vehicle damage
  • Thick rubber door guards on carriages for added protection
  • Single-point lock releases for ease of use
  • Direct-drive hydraulic cylinders for smooth operation
  • Powder coat finish for increased durability
  • Includes free 8-piece truck adapter set
  • Mounting hardware included
  • 5-year structural warranty, 2-year hydraulic warranty

Specifications

  • Capacity: 12,000 lbs.
  • Overall Height: 165" (13' 9") or 177" (14' 9")
  • Overall Floor Width: 150 3/8" (12' 6 3/8")
  • Outside Column to Outside Column: 139 1/8" (11' 7 1/8")
  • Maximum Lift Height (Without Adapters): 73 5/8"
  • Maximum Lift Height (With Adapters): 85 1/2"
  • Minimum Arm Height: 4 1/2"
  • Inside Column Width: 122 5/8" (10' 2 5/8")
  • Drive-Thru Width: 109 5/8" (9' 1 5/8")
  • Column Size: 7 1/2" x 14 1/2"
  • Column Steel Thickness: 6mm
  • Base of Lift: 17 1/2" x 20 1/2"
  • Motor/Electrical Requirement: 220V / Single-phase (30A breaker required)
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)
  • Shipping Weight: 2,425 lbs.
  • Adapter Heights: 4 Each 4.5", 8.5"
  • Arm Hole/Adapter Peg Size: 1.57"
  • Concrete Requirement: Minimum 6" of concrete with a 3000 psi rating
