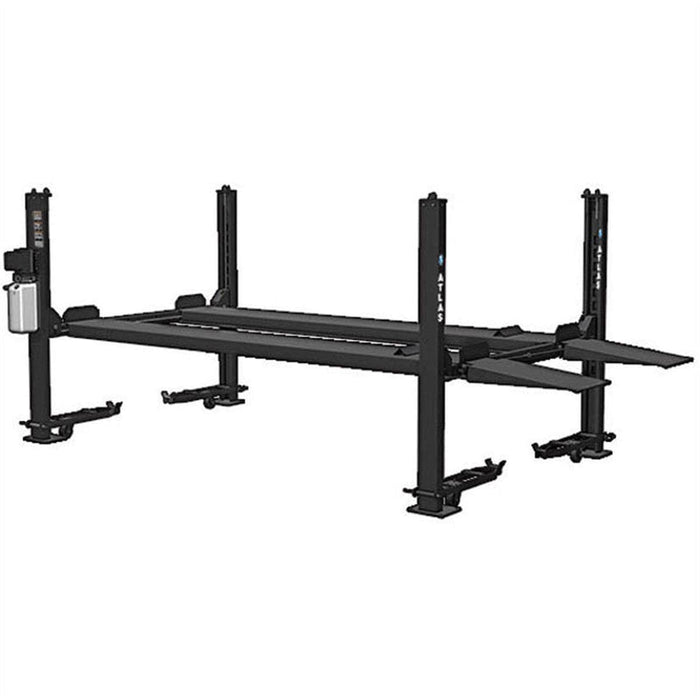

Atlas Equipment Apex 8 ALI Certified Hobbyist 8,000 lb. Capacity 4-Post Lift

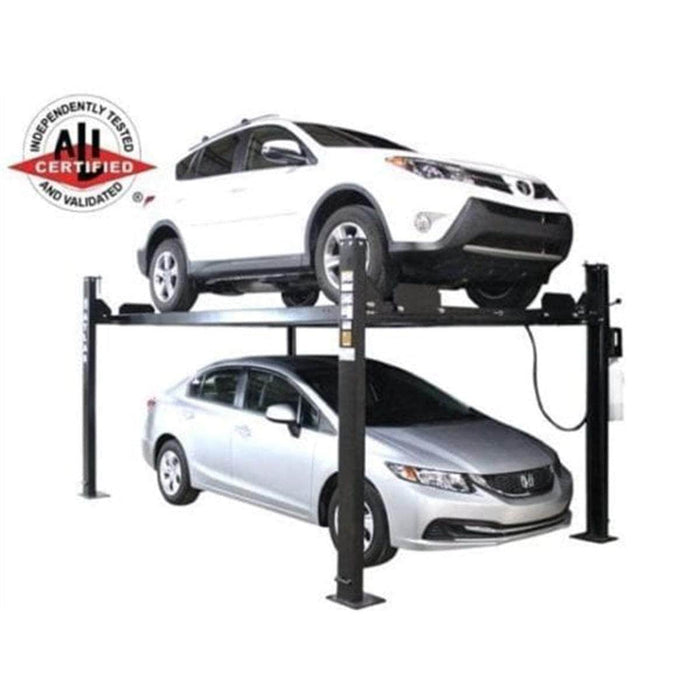

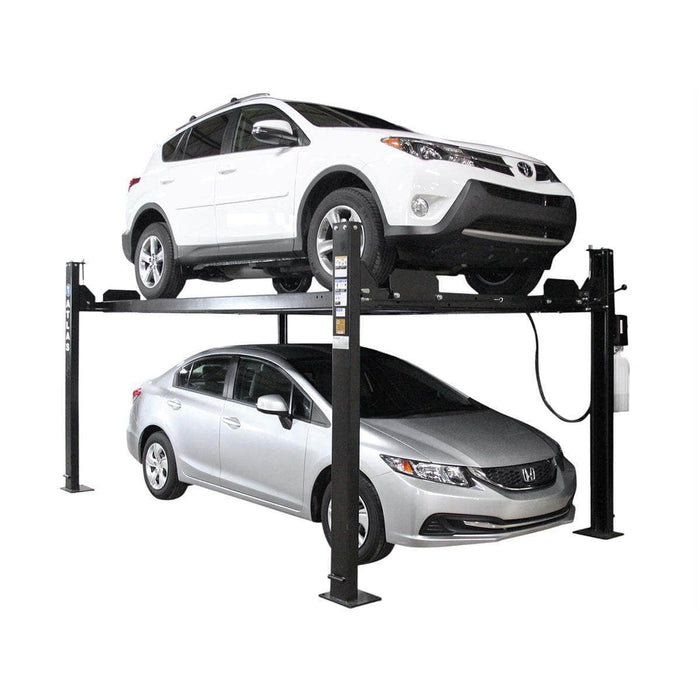

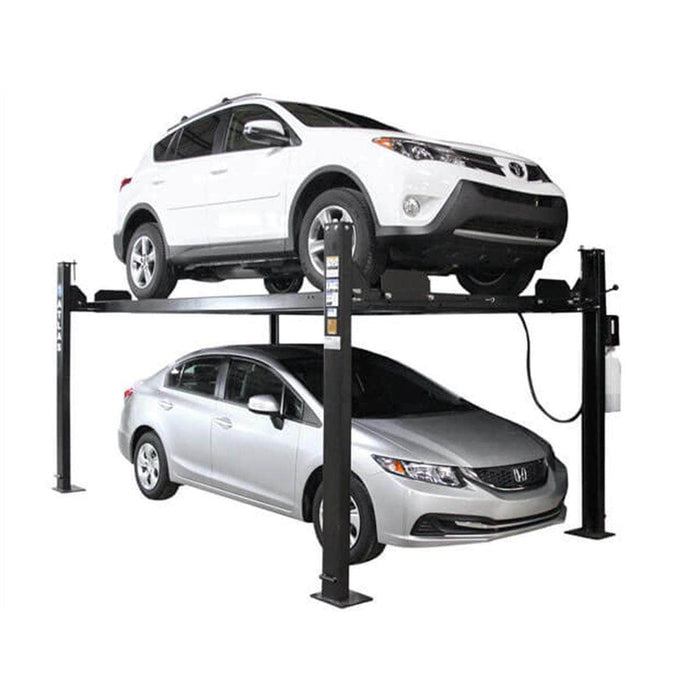

The Atlas® APEX8 is an ALI Certified version of the popular Atlas® Garage PRO8000, designed for hobbyists and car enthusiasts who need extra storage space or a reliable lift for vehicle maintenance. With its free-standing and portable design, the APEX8 allows users to double their storage space by stacking most passenger cars effortlessly.

The Atlas® APEX8 is built with homeowners and restoration shops in mind, offering a sturdy yet portable solution for vehicle storage. This lift is not intended for heavy commercial use where it would be raised and lowered multiple times per day. Weighing nearly 200 lbs. more than similar models, the APEX8 boasts superior durability and stability.

Additionally, the APEX8 includes free plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels, making it easy to move between bays or even outdoors. With the added peace of mind of ALI Certification, this lift stands out as one of the best values in the four-post hobbyist category.

Features & Benefits

  • ALI Certified for safety and reliability
  • 8,000 lb. capacity for storage or maintenance
  • Free-standing and portable design
  • Powder coat finish for increased durability

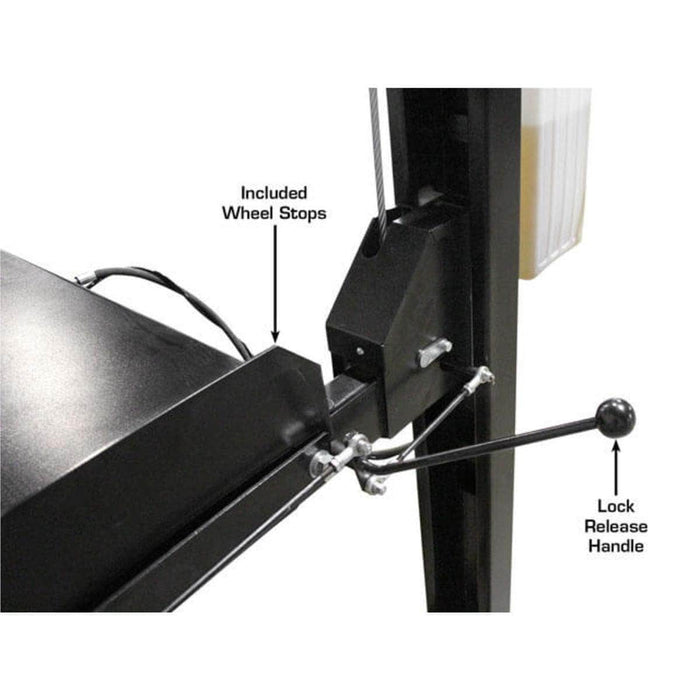

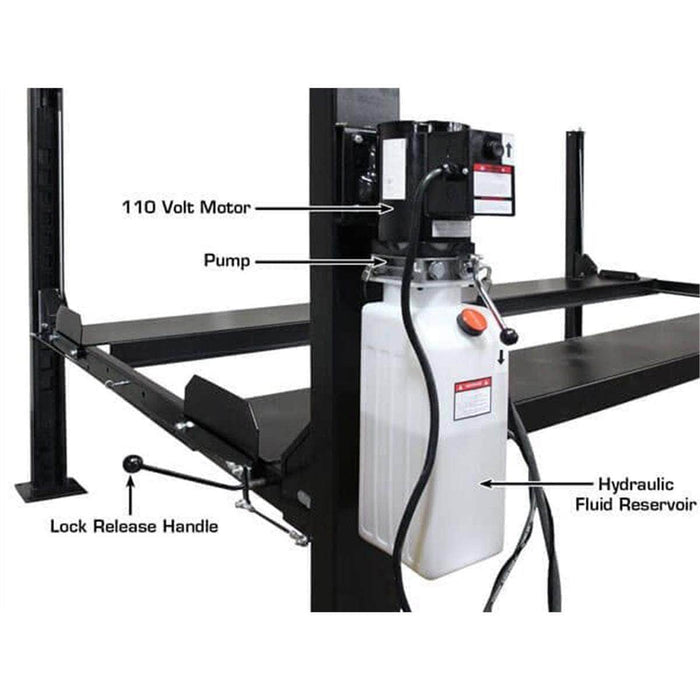

  • Single-point lock release for ease of use

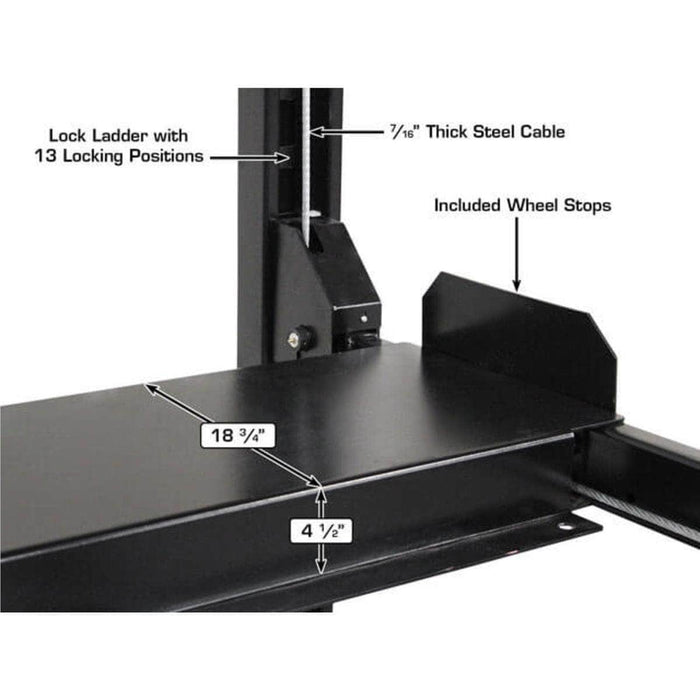

  • Lock ladder design with a double-lock safety system

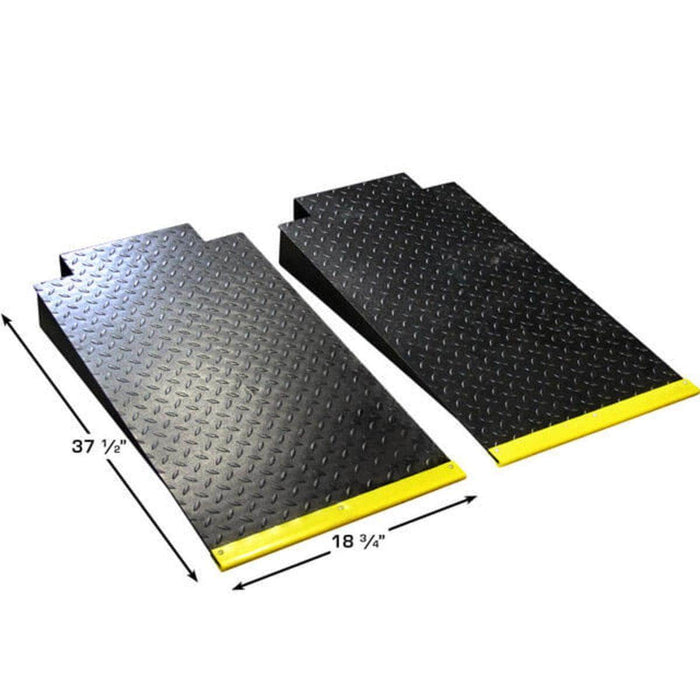

  • Steel approach ramps included

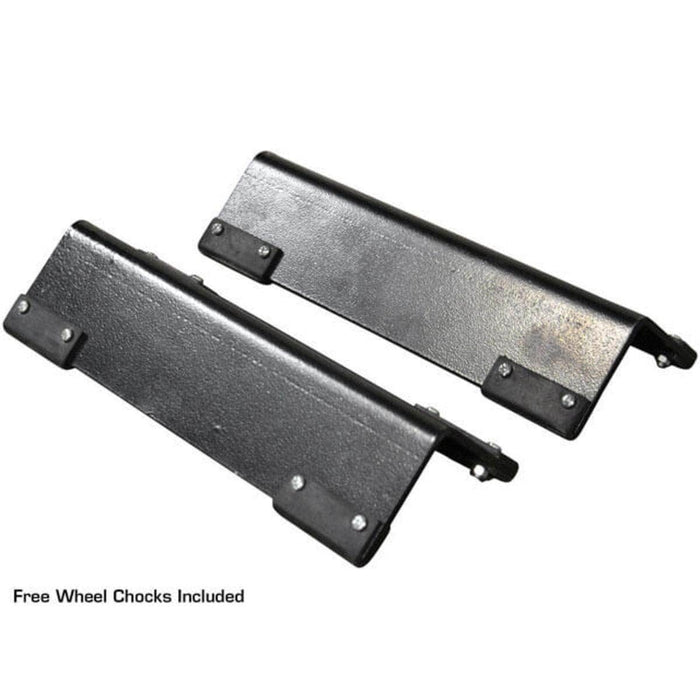

  • Two wheel chocks for added security

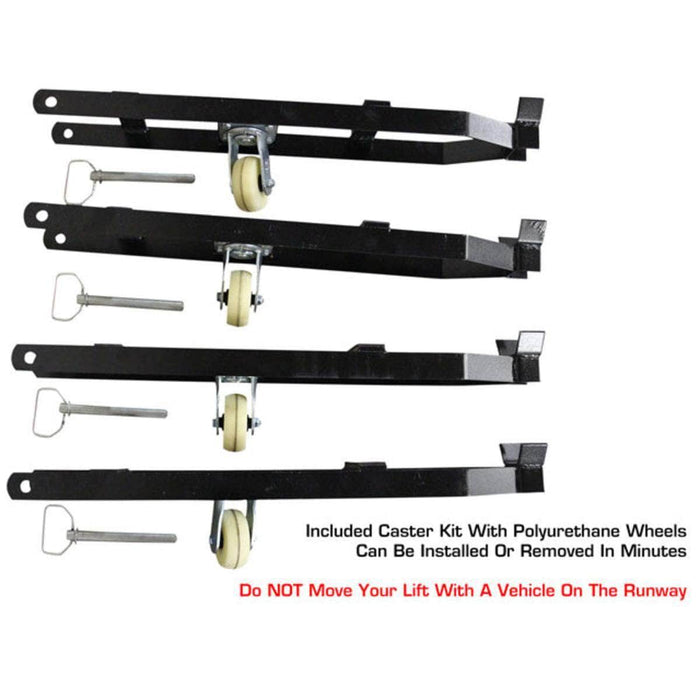

  • Caster kit with polyurethane wheels for easy movement
  • Optional anchor bolts available (sold separately)

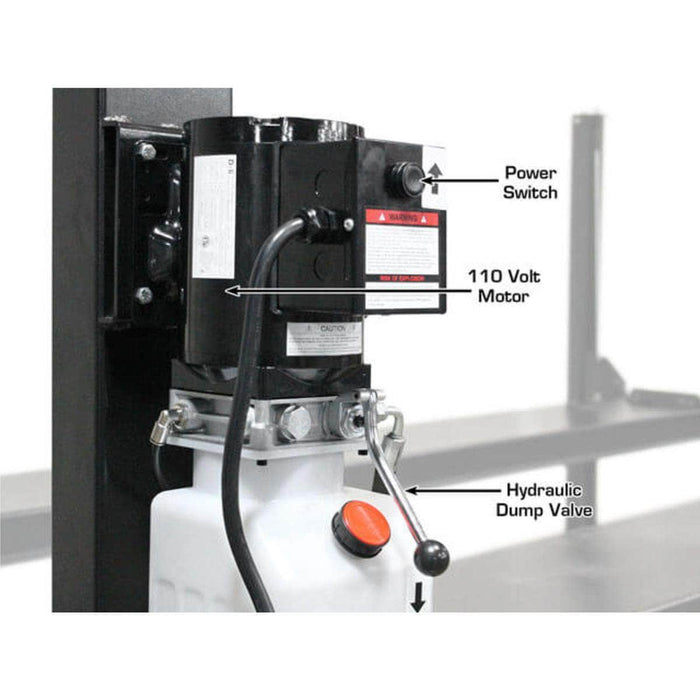

  • Operates on 110V electric power (requires a 30A breaker)
  • 5-year structural warranty, 2-year hydraulic warranty

Specifications

  • Capacity: 8,000 lbs.
  • Lifting Height (Top of Runway): 72" (6')

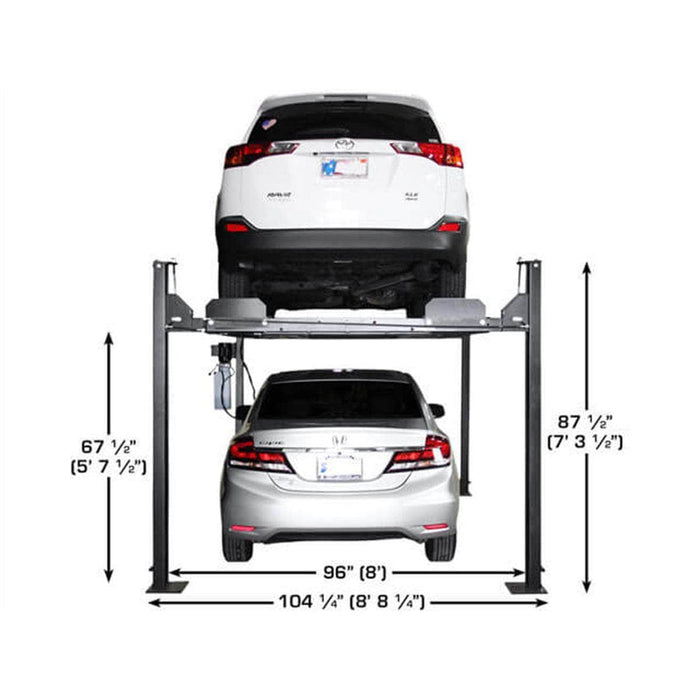

  • Clearance Under Runways: 67" (5' 7")
  • Height of Columns: 85" (7' 1")

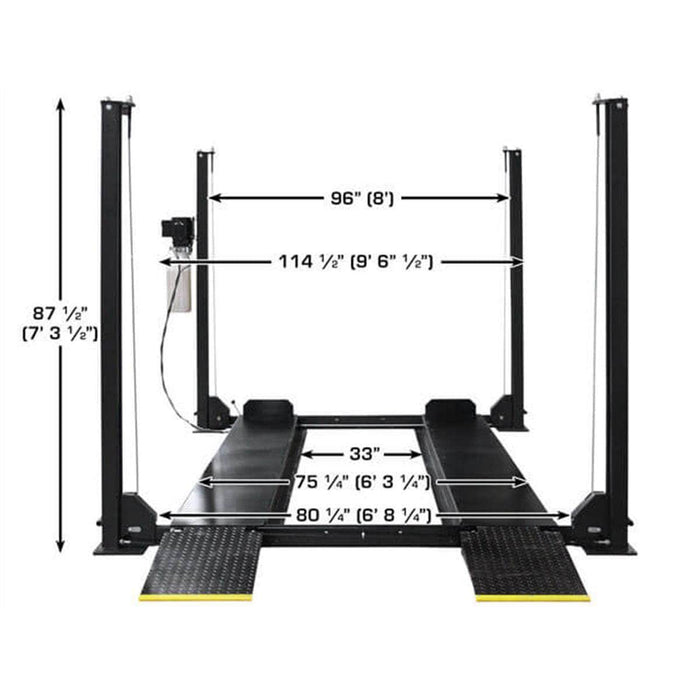

  • Overall Width: 104" (8' 8") w/ motor 114" (9' 6")

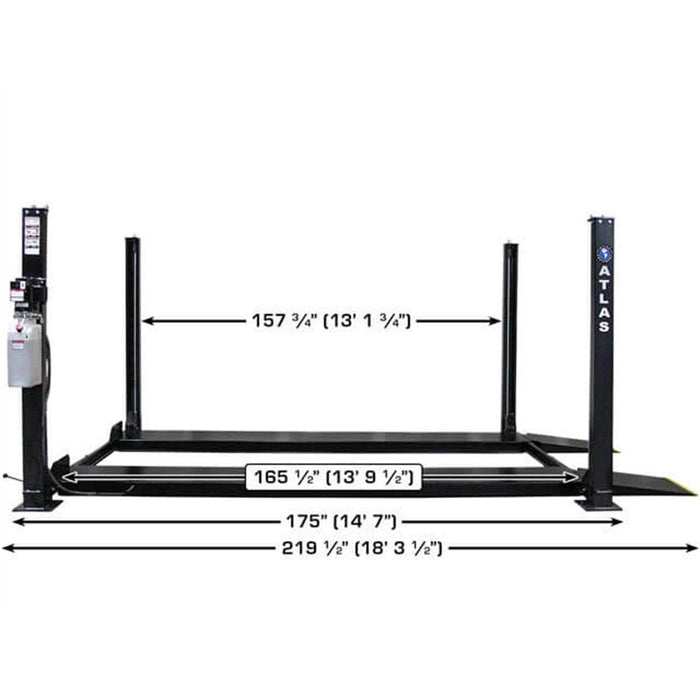

  • Overall Length (With Ramps): 207 5/8" (17' 3 5/8")
  • Runway Length: 169 1/2" (14' 1 1/2")
  • Runway Width: 18 2/4"
  • Runway Thickness: 4 1/3"
  • Width Between Runways: 38" (w/ Rail 33")
  • Outside Runway to Outside Runway: 75 1/4" (6' 3 1/4")
  • Clearance Between Columns: 94" (7' 10")

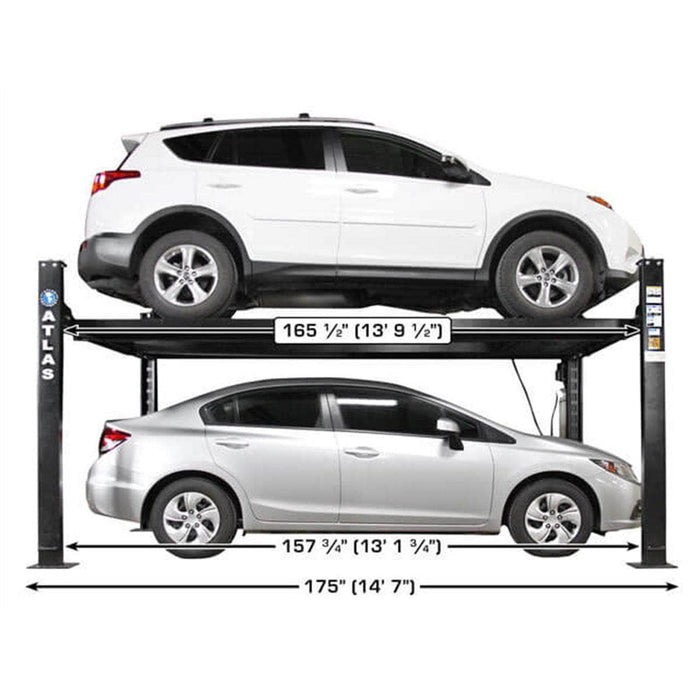

  • Length Between Columns: 157 1/3" (13' 1 1/3")
  • Drive-Thru Width: 80 1/4" (6' 8 1/4")
  • Motor/Electrical Requirement: 110V, 30A breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)

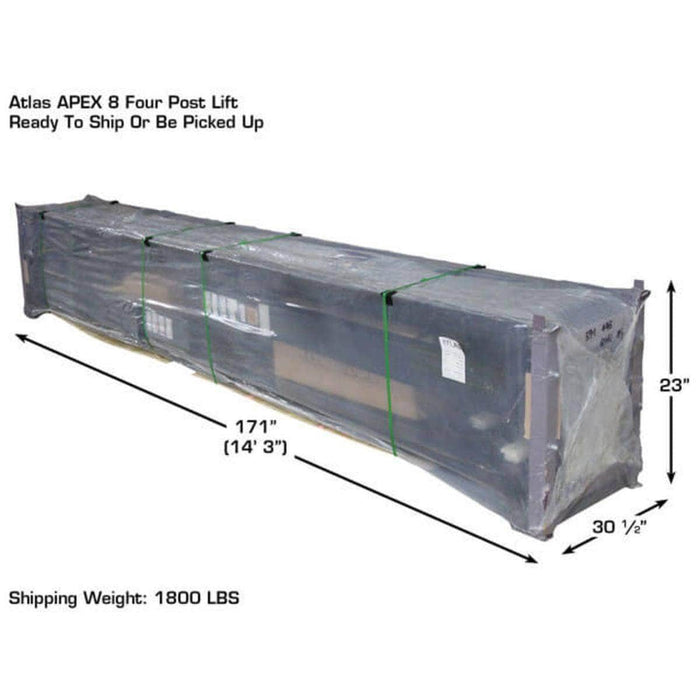

  • Shipping Weight: 2,000 lbs.
