Description

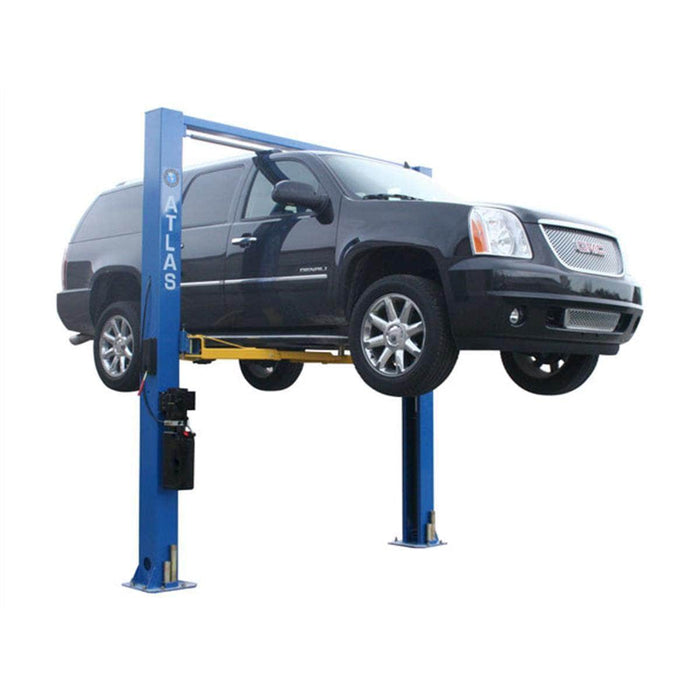

Atlas Equipment 9OHSC Overhead 9,000 lb. Capacity 2-Post Lift

The Atlas® 9OHSC is a premium two-post overhead lift designed for both small commercial repair facilities and dedicated home garage enthusiasts. With a TRUE 9,000 lb. lifting capacity, it provides exceptional performance for servicing a wide range of vehicles, from compact cars to full-sized SUVs and trucks.

Featuring a single-piece column design and extra-long carriages, the Atlas® 9OHSC is built for durability and stability, ensuring years of trouble-free service. Its overhead, open-floor design provides an unobstructed workspace, allowing mechanics easy access to all sides of the vehicle.

The 9OHSC also incorporates a single-point lock release system, rubber guards on carriages for added vehicle protection, and dual hydraulic chain-drive cylinders for smooth and powerful lifting. This lift requires a minimum ceiling height of 12 feet for proper installation.

Features & Benefits

9,000 lb. lifting capacity for versatile vehicle support
Overhead, open-floor lift for easy workspace access
Single-piece column design for maximum strength
3-stage front arms and 2-stage rear arms for flexibility
Automatic arm restraints for enhanced safety
Single-point lock release for convenient operation
Dual hydraulic chain-drive cylinders for smooth lifting
Rubber guards on carriages to prevent vehicle damage
Free 12-piece truck adapter set included

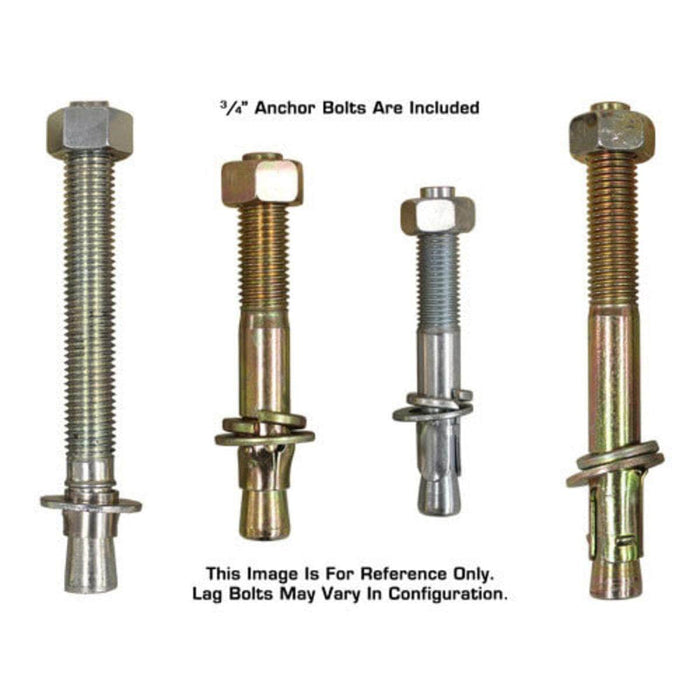

Includes mounting hardware for secure installation
5-year structural warranty, 2-year hydraulic warranty

Specifications

Capacity: 9,000 lbs.
Overall Height: 142" (11' 10")
Overall Floor Width: 133 1/2" (11' 1 1/2")
Outside Column to Outside Column: 125 1/2" (10' 5 1/2")
Max Lift Height (w/o Adapters): 76 3/4"
Max Lift Height (w/ Adapters): 87 3/4"
Min Arm Height: 4"
Inside Column Width: 109 1/2" (9' 1 1/2")
Drive-Thru Width: 100 1/2" (8' 4 1/2")
Column Size: 8" x 9 3/8"
Column Thickness: 5mm
Base of Lift: 16 3/4" x 17 3/4"
Motor/Electrical Requirement: 220V / Single-phase (30A breaker recommended)
Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)
Shipping Weight: 1,430 lbs.
Adapter Heights: 4 Each 2", 3", 6"
Arm Hole/Adapter Peg Size: 1.5"
Concrete Requirement: Minimum 4" thickness with a 3000 PSI rating
