Atlas Equipment 414A Alignment Lift + RJ8 Rolling Jacks Combo

by Atlas Auto Equipment

Availability:

Low stock

$12,399.00 - $12,399.00

$12,399.00

$12,399.00 - $12,399.00

$12,399.00

Quantity

Call/Text: 866-812-8892

Live Chat

Why Shop with Us

Authorized Atlas Auto Equipment Dealer
Lowest Price Guarantee
No Sales Tax (Except WY)
Fast FREE Shipping
Any Questions? Talk to Atlas Auto Equipment Experts (866) 812-8892

Description

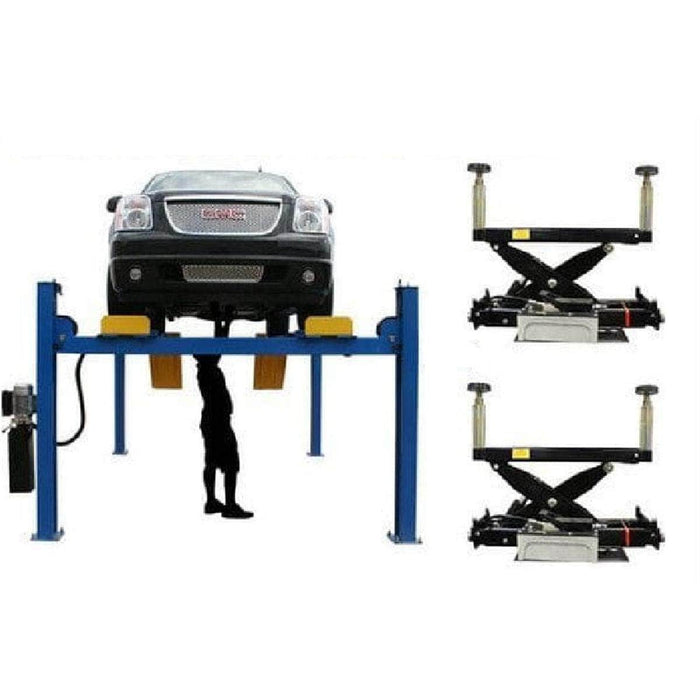

Atlas Equipment 414A Alignment Lift + RJ8 Rolling Jacks Combo

The Atlas® 414A 14,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor’s lifts.

Features & Benefits

Combo Package includes 414A 14,000 lb. Alignment lift & two RJ8 rolling jacks
Heavy Duty, Commercial Grade
Lift is Extra Tall, Extra Wide & Extra Long
Lift has Diamond Plated Runways
Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
Alignment Turntables Included
Lift has Built-In Slip Plates
Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)
Mounting Hardware Included
Jacks are Air Over Hydraulic Operated
Truck Adapter Set for each Jack Included

Specifications

Capacity: 14,000 lb.
Lifting Height: 80" (6' 8")
Overall Width Of Columns (Without Motor): 130 7/8" (10' 10 7/8")
Overall Width Of Columns (With Motor): 138 7/8" (11' 6 7/8")
Overall Length With Approach Ramp: 255" (21' 3")
Length Between Columns: 197 1/4" (16' 5 1/4")
Runway Length: 208 5/8" (17' 4 5/8")
Runway Width: 20"
Thickness Of Runway: 8 3/4"
Width Between Runways: 46 7/8" (w/ Rail 44 3/8")
Outside Runway To Outside Runway: 86 7/8" (7' 2 7/8")
Clearance Under Runways: 71 1/4" (5' 11 1/4")
Clearance Between Columns: 116" (9' 8")
Height Of Columns: 91 1/8" (7' 7 1/8")
Maximum Wheel Base: 197" (16' 5")
Drive Thru: 102 1/8" (8' 6 1/8")
Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement: 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 3,200 LBS.
Requires a minimum of 6" of concrete with a 3000 psi. rating

RJ8 Rolling Jack Specifications

Maximum Capacity: 8,000 lb.
Maximum Width: 66 1/2" (5' 6 1/2")
Minimum Width: 40" (3' 4")
Distance Between Runway Capability: 34 1/2" - 55"
Maximum Lifting Height (With Adapters): 30"
Air Requirement: 70-115 PSI (External Air Supply Required - NOT INCLUDED)
Shipping Weight: 390 lbs.
Adapter Heights: 2 Each 2", 3"
Arm Hole/Adapter Peg Size: 1.5"
