Atlas Equipment 414A 14,000 LB 4-Post Alignment Lift w/ Turntables

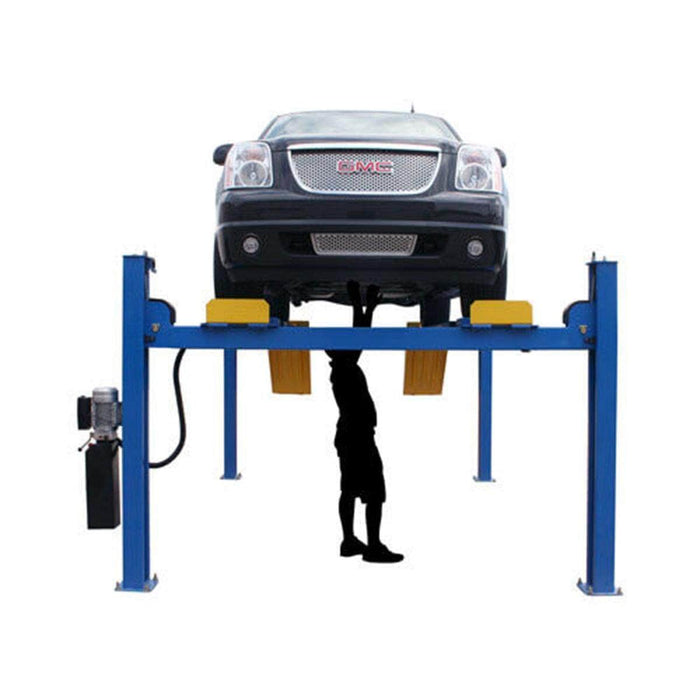

The Atlas® 414A is a 14,000 lb. capacity four-post alignment lift designed and built to commercial-grade standards, ensuring long-term reliability and exceptional performance. This lift is ideal for professional shops requiring a versatile alignment solution with built-in slip plates and turntables for precise wheel alignments.

The Atlas® 414A incorporates premium structural and cosmetic enhancements typically found in higher-priced models. It uses a high-strength cable system with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase power unit, for smooth and efficient lifting. Unlike outdated chain lifting systems, which are difficult to level and prone to door dings, the 414A offers a more advanced and user-friendly operation.

Along with its heavy-duty construction, the Atlas® 414A features built-in slip plates and alignment turntables, with adjustable positioning to accommodate a wide range of wheelbases. When not in use for alignments, the turntables can be removed and replaced with metal cover plates, making this lift a multifunctional solution for maintenance and repair work.

Features & Benefits

  • 14,000 lb. capacity for handling a wide range of vehicles
  • Heavy-duty, commercial-grade construction
  • Extra tall, extra wide, and extra long for maximum versatility
  • Built-in slip plates and alignment turntables included
  • Multiple turntable placement positions for different wheelbases
  • Includes runway covers for general maintenance use
  • Air-operated single-point lock release (external air supply required)
  • Double-lock safety system for enhanced security
  • Powder coat finish for durability
  • Steel approach ramps included
  • Additional drive-off ramps and runway extensions available (sold separately)
  • Mounting hardware included
  • 220V single-phase electric operation (30A breaker required)
  • 5-year structural warranty, 2-year hydraulic warranty

Specifications

  • Capacity: 14,000 lbs.
  • Lifting Height: 80" (6' 8")
  • Overall Width (Without Motor): 130 7/8" (10' 10 7/8")
  • Overall Width (With Motor): 138 7/8" (11' 6 7/8")
  • Overall Length (With Approach Ramp): 255" (21' 3")
  • Length Between Columns: 197 1/4" (16' 5 1/4")
  • Runway Length: 208 5/8" (17' 4 5/8")
  • Runway Width: 20"
  • Runway Thickness: 8 3/4"
  • Width Between Runways: 46 7/8" (w/ Rail 44 3/8")
  • Outside Runway to Outside Runway: 86 7/8" (7' 2 7/8")
  • Clearance Under Runways: 71 1/4" (5' 11 1/4")
  • Clearance Between Columns: 116" (9' 8")
  • Height of Columns: 91 1/8" (7' 7 1/8")
  • Maximum Wheel Base: 197" (16' 5")
  • Drive-Thru Width: 102 1/8" (8' 6 1/8")
  • Air Requirement: 85-115 PSI (External Air Supply Required)
  • Motor/Electrical Requirement: 220V single-phase (30A breaker recommended)
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)
  • Shipping Weight: 3,200 lbs.
  • Concrete Requirement: Minimum of 6" thickness with a 3,000 PSI rating
