Atlas Equipment 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jacks Combo

Availability:
in stock, ready to be shipped
Original price $17,699.00 - Original price $17,699.00
Original price
$17,699.00
$17,699.00 - $17,699.00
Current price $17,699.00

Why Shop with Us

  • Authorized Atlas Auto Equipment Dealer
  • Lowest Price Guarantee
  • No Sales Tax (Except WY)
  • Fast FREE Shipping
  • Any Questions? Talk to Atlas Auto Equipment Experts (866) 812-8892

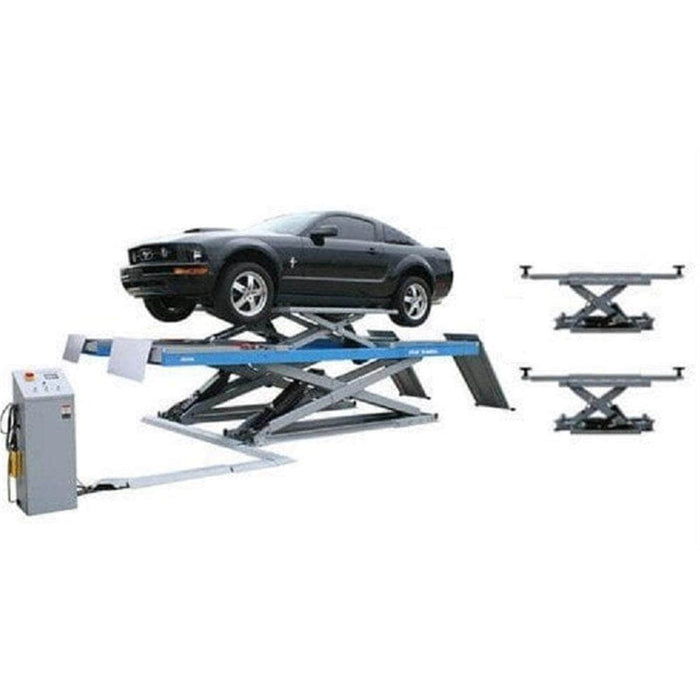

Atlas Equipment 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jacks Combo

The Atlas® 12AWFSL 12,000 lb. scissor alignment lift has all the same features as the Atlas® 12ASL lift but with the addition of built-in runway lifts known as the "Wheels Free" lifting system. When a vehicle is loaded on the 12AWFSL lift, the "Wheels Free" jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments. The "Wheels Free" jacks are conveniently controlled at the lift's control console.

Features & Benefits

  • Combo includes 12AWFSL scissor alignment lift & two RJ-6 rolling jacks
  • Commercial Grade
  • "Wheels Free" Lifting System
  • Built in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access
  • Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
  • Airline Kit Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included

Specifications

  • Capacity: 12,000 lbs.
  • Minimum Lift Height: 11 1/2"
  • Maximum Lift Height Above Floor: 84 1/4" (7' 1/4")
  • "Wheels Free" Lift Height Above Runway: 17"
  • Overall Length w/ Ramps: 250" (20' 10")
  • Overall Length w/o Ramps: 197" (16' 5")
  • Overall Width: 86 3/8" (7' 2/3/8")
  • Runway Width: 23 3/4"
  • Between Runways: 39"
  • Air Requirement: 85-120 PSI
  • Motor/Electrical Requirement: 220V +/- 5% (209-231 volts)/1-phase 30 amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 5,500 lbs.

RJ-6 Rolling Jack Specifications

  • Capacity: 6,000 lbs.
  • Minimum Width: 30 1/2"
  • Maximum Width: 64 1/2"
  • Distance Between Runway Capability: 31 1/2" - 49 1/2"
  • Minimum Pad Height (Above Runway): 3 1/2"
  • Maximum Lifting Height (w/ Adapters): 17 5/8"
  • Air Requirement: 70-115 PSI
  • Shipping Weight: 350 lbs.
  • Adapter Heights: 2 Each 3", 7"
  • Arm Hole/Adapter Peg Size: 2"
