Atlas Automotive Equipment BP8000 8,000 lb Capacity Baseplate 2-Post Lift

by Atlas Auto Equipment

Availability:

in stock, ready to be shipped

$2,899.00 - $2,899.00

$2,899.00

$2,899.00 - $2,899.00

$2,899.00

Quantity

Call/Text: 866-812-8892

Live Chat

Why Shop with Us

Authorized Atlas Auto Equipment Dealer
Lowest Price Guarantee
No Sales Tax (Except WY)
Fast FREE Shipping
Any Questions? Talk to Atlas Auto Equipment Experts (866) 812-8892

Description

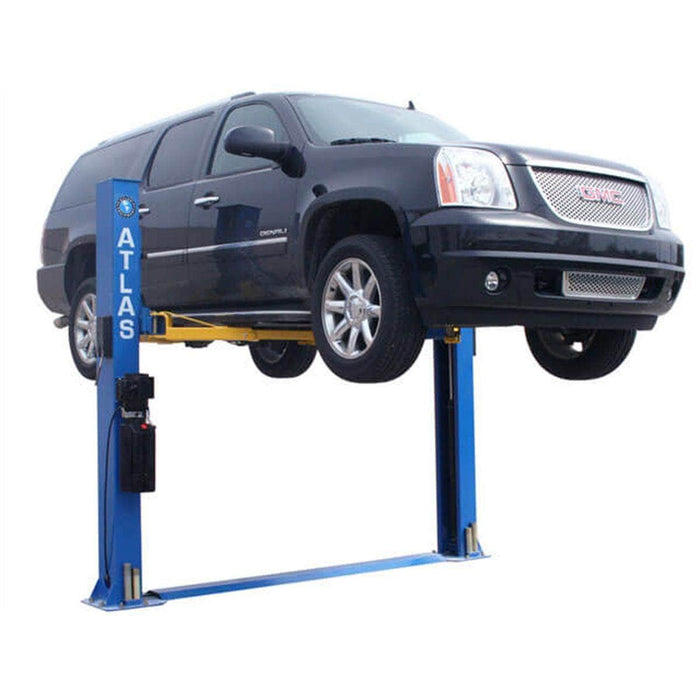

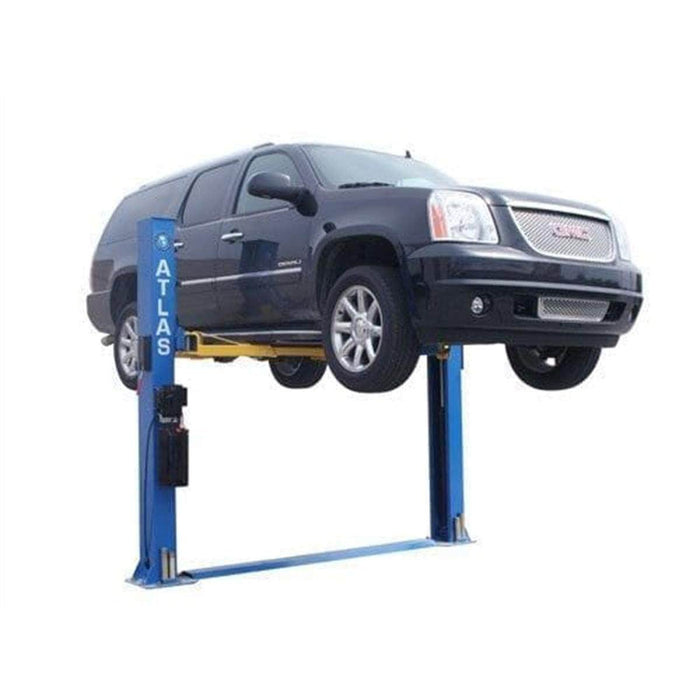

Atlas Equipment BP8000 8,000 lb. Capacity Baseplate 2-Post Lift

The Atlas® BP8000 is a baseplate two-post lift designed for low-ceiling garages. With a total column height of just 108 inches (9 feet), this lift is perfect for professional or home garages with limited vertical space.

Despite its compact size, the BP8000 includes many premium features found in larger, more expensive lifts. It features a single-point lock release, super-symmetric arms, and a twelve-piece truck adapter set. With its durable powder-coated finish and a double safety lock system, this lift provides reliability and longevity for automotive service needs.

Features & Benefits

8,000 lb. lifting capacity for light-duty commercial and hobbyist use
Baseplate, open-top style lift for low-ceiling environments

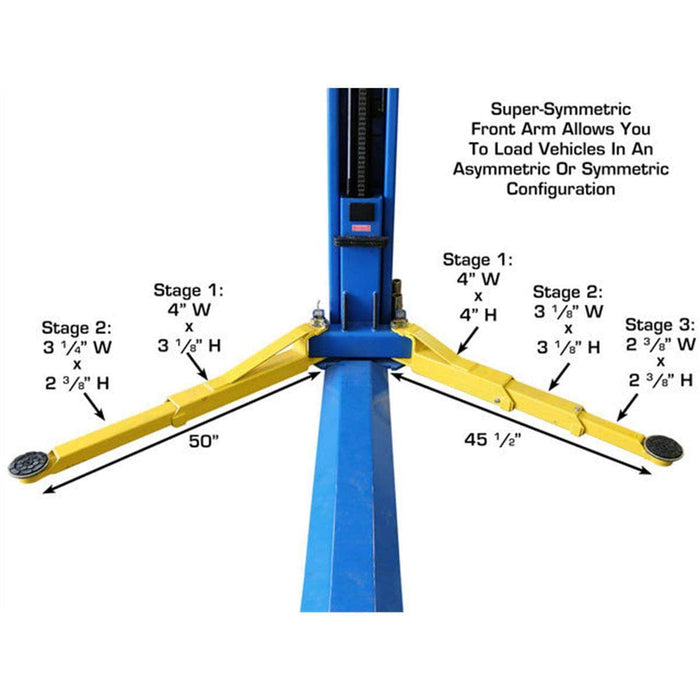

Three-stage front arms and two-stage rear arms for versatile vehicle lifting
Automatic arm restraints for enhanced security

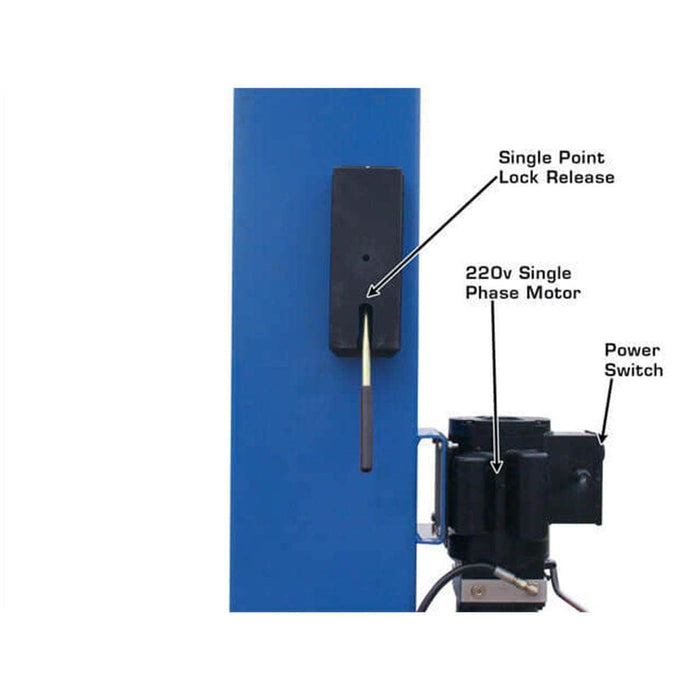

Single-point lock release for ease of operation

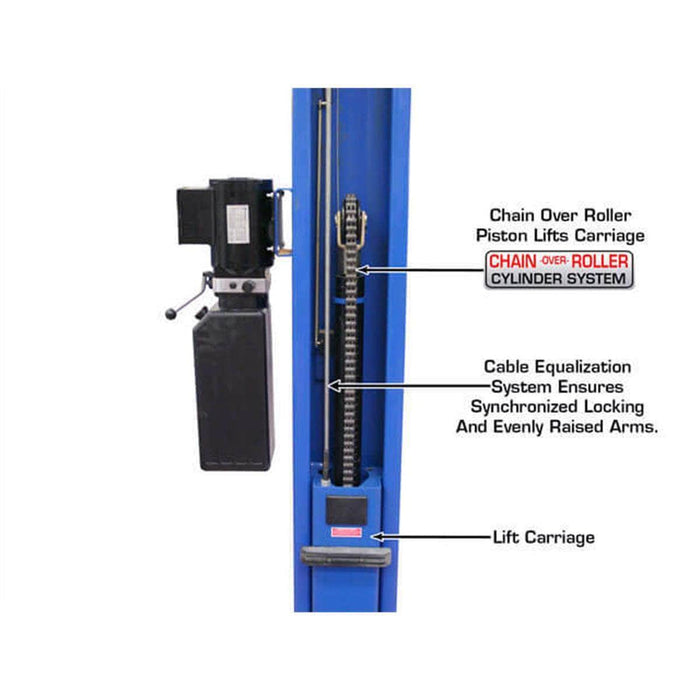

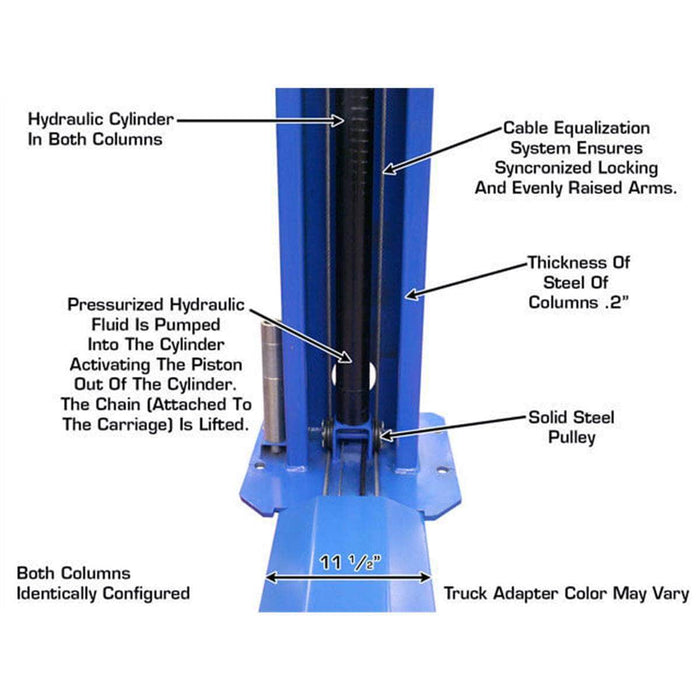

Dual hydraulic chain-drive cylinders for smooth lifting
Double safety lock system for added reliability
Durable powder-coated finish for longevity
Free 12-piece truck adapter set included
Includes heavy-duty mounting hardware
5-year structural warranty, 2-year hydraulic warranty

Specifications

Capacity: 8,000 lbs.

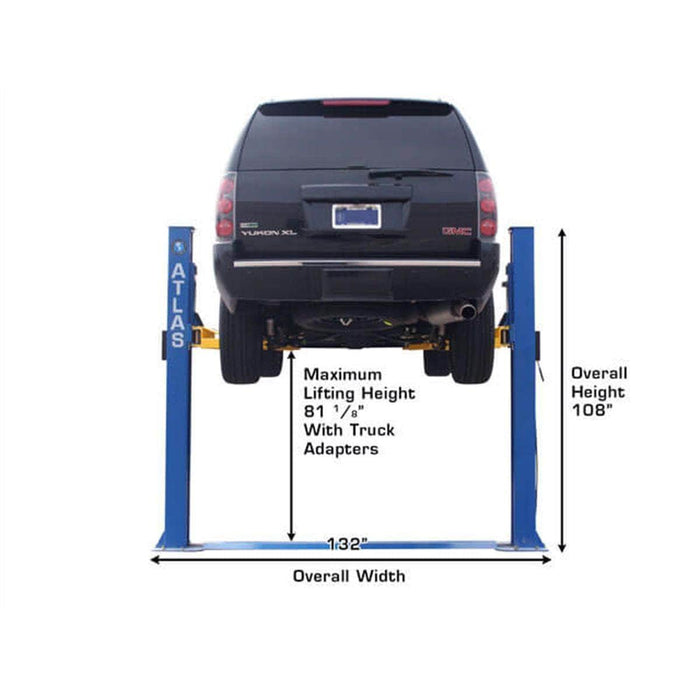

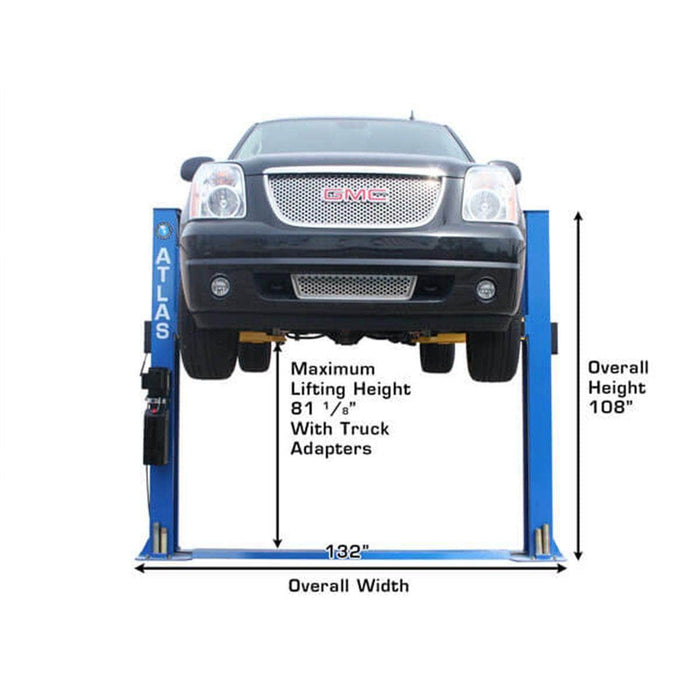

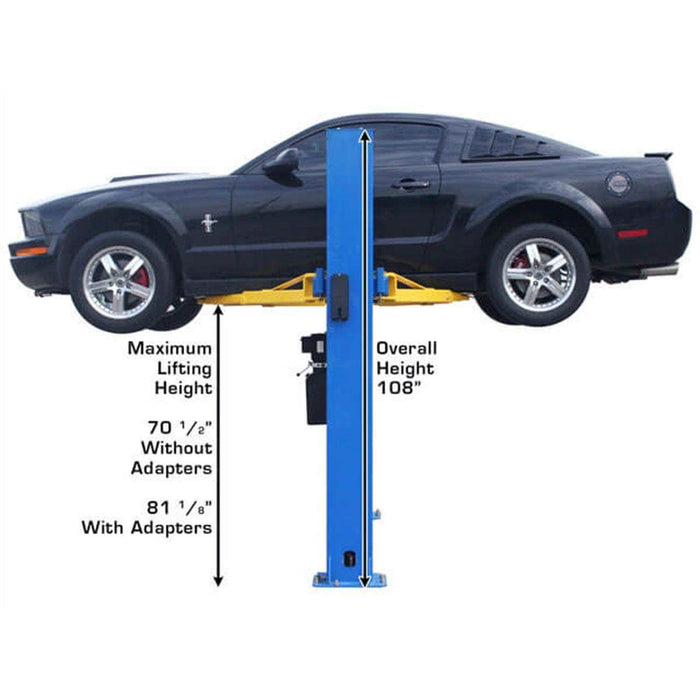

Overall Height: 108" (9')
Overall Floor Width: 132" (11')
Outside Column to Outside Column: 124" (10' 4")

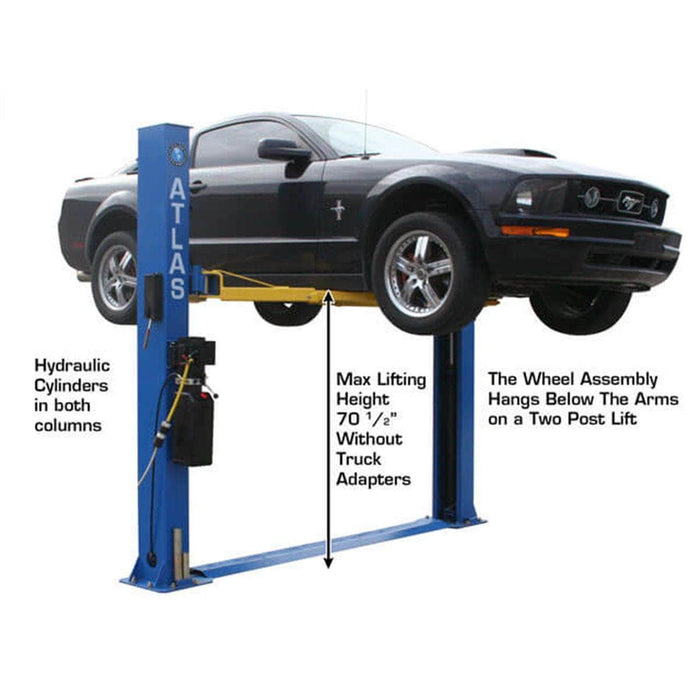

Maximum Lift Height (Without Adapters): 75 1/2"

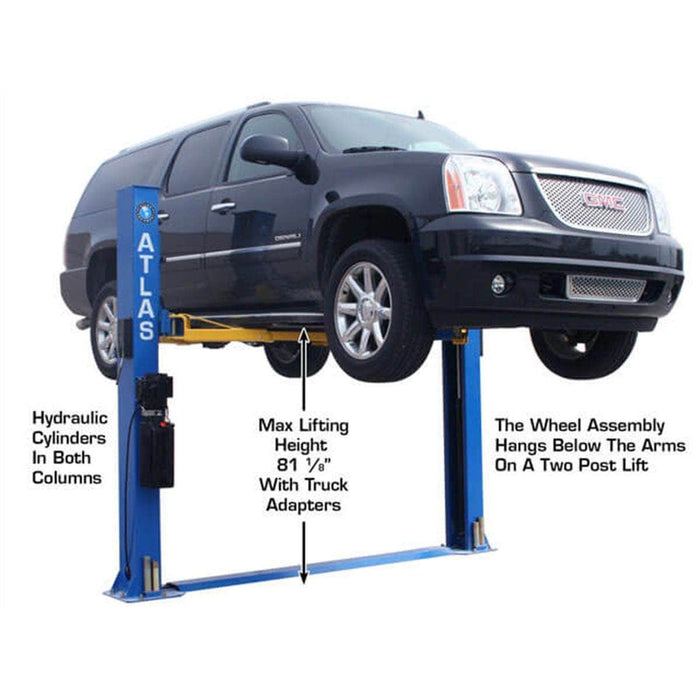

Maximum Lift Height (With Adapters): 86 1/2"
Minimum Arm Height: 4"
Inside Column Width: 109 1/8” (9' 1 1/8”)
Drive-Thru Width: 99” (8' 3”)

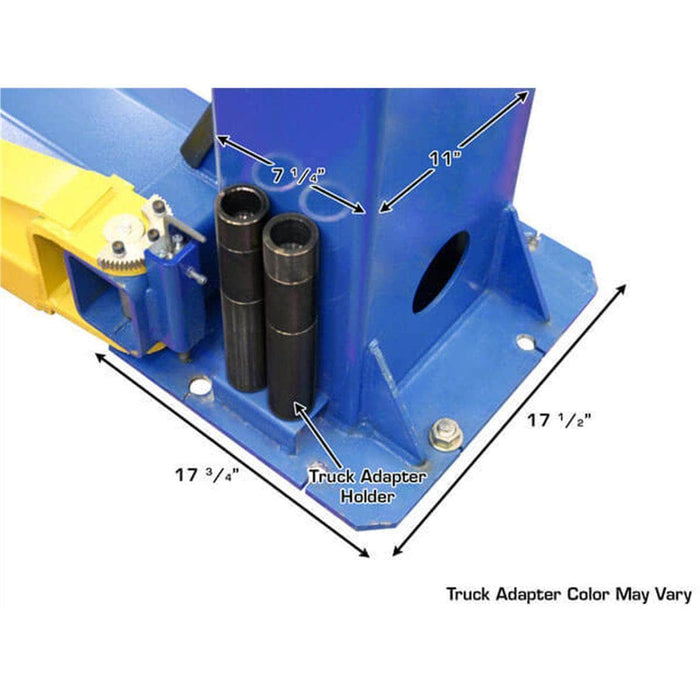

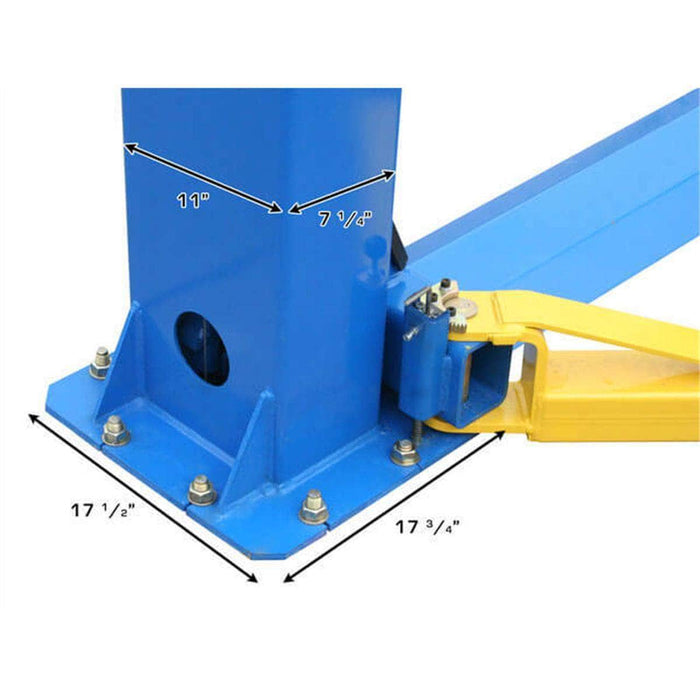

Column Size: 7 1/4" x 11"
Column Steel Thickness: 6mm
Base of Lift: 17 1/2" x 17 3/4"

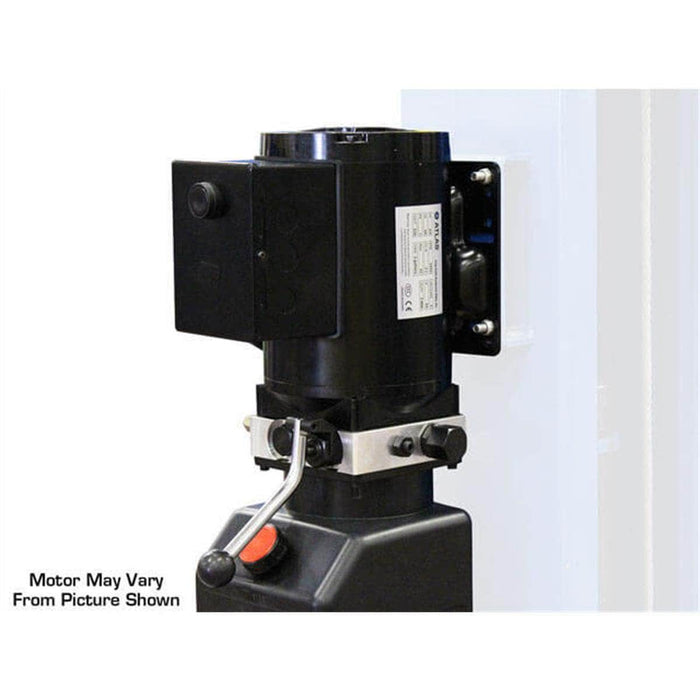

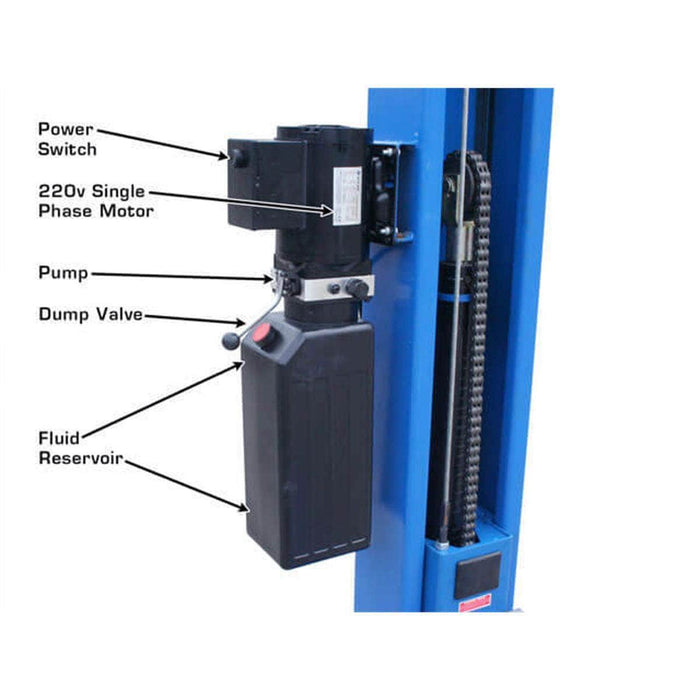

Motor/Electrical Requirement: 220V / Single-phase (30A breaker required)
Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)

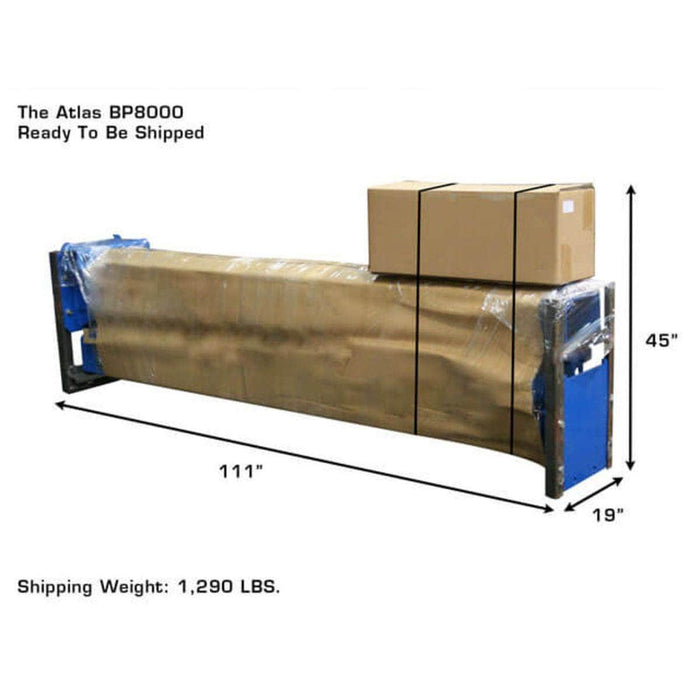

Shipping Weight: 1,300 lbs.

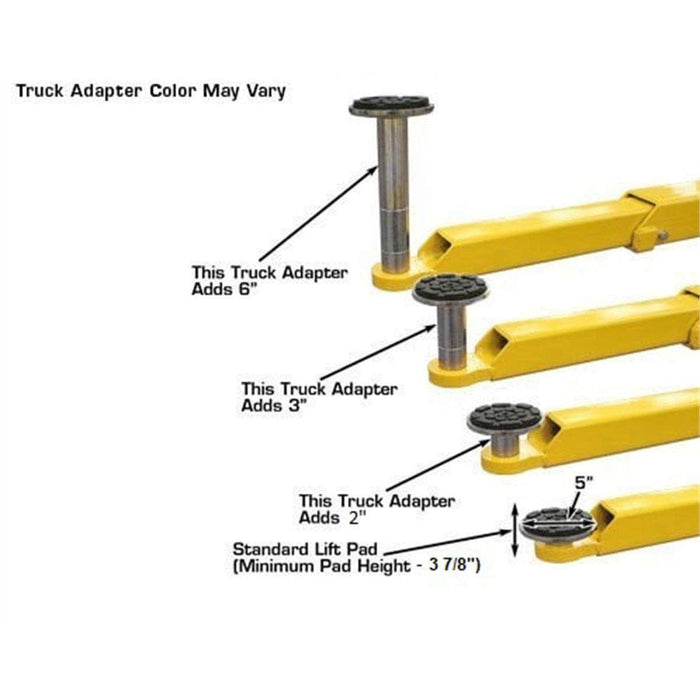

Adapter Heights: 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size: 1.5”
Concrete Requirement: Minimum 4" of concrete with a 3000 psi rating
