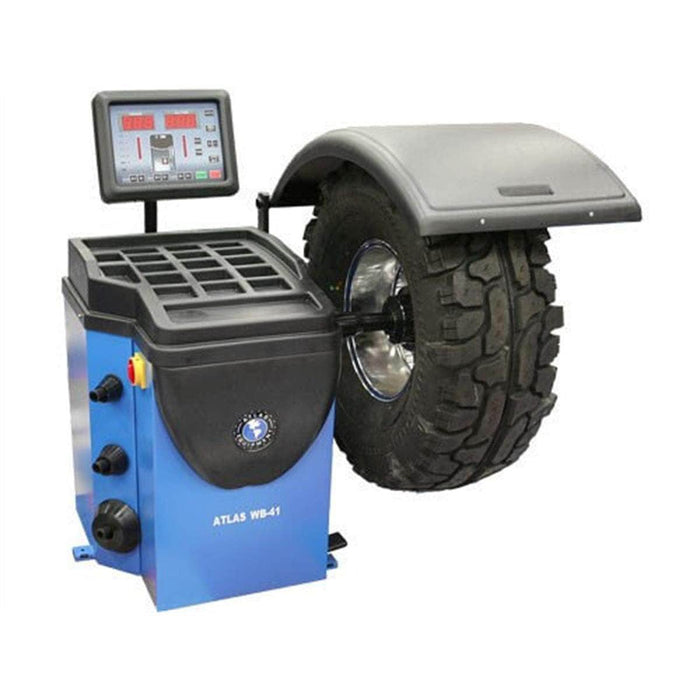

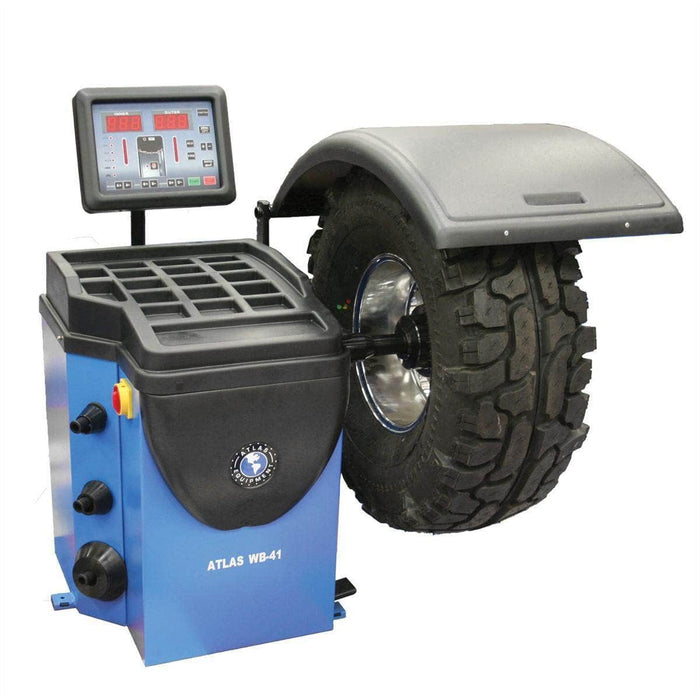

Atlas Automotive Equipment WB41 Computerized Wheel Balancer

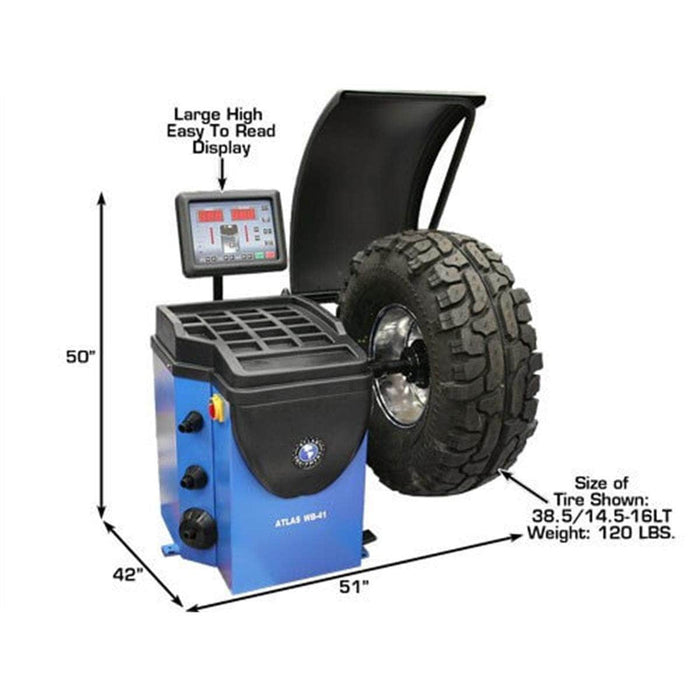

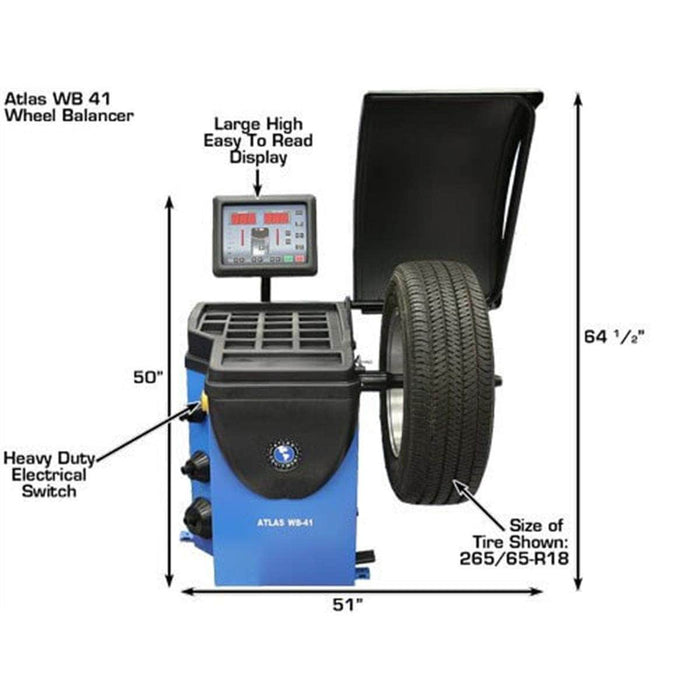

The Atlas® WB41 is the “Big Brother” to our extremely popular Atlas® WB11. The WB41 handles the same wheels as the WB11 but has the added advantages of a raised display which is easier to read and use and a larger, more spacious wheel weight tray.

The Atlas® WB41 is a simple yet sophisticated wheel balancer. Each electrical component is virtually plug and play, making repairs easy when replacement parts are needed.

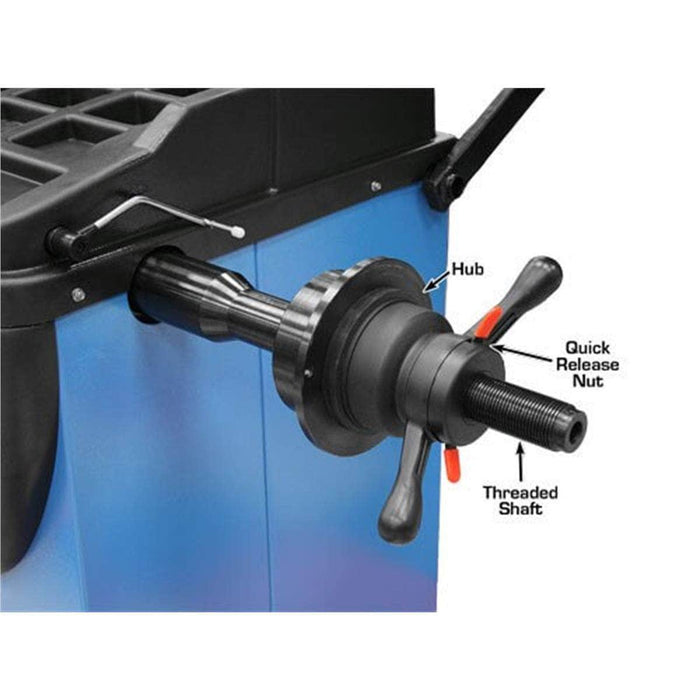

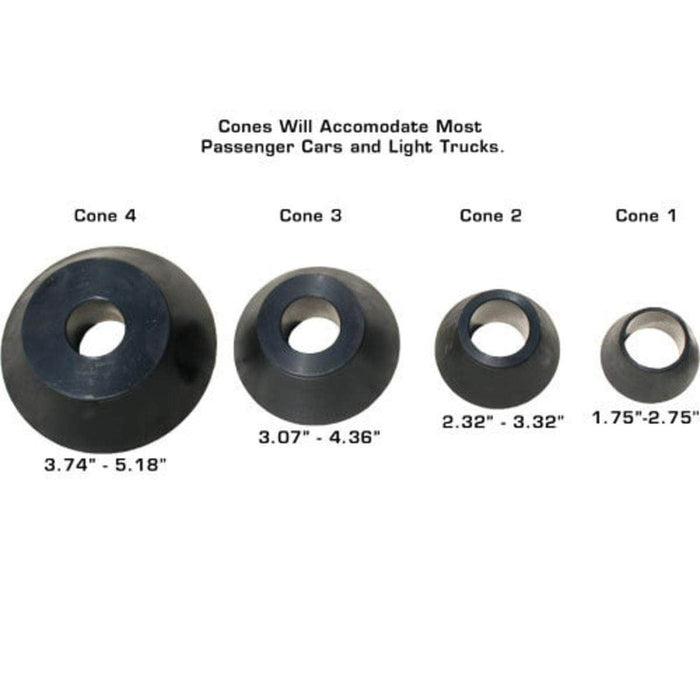

The Atlas® WB41 is capable of self-diagnosing problems and displays error codes, allowing operators to make necessary adjustments or repairs in-house, eliminating the need for costly service technicians. The WB41 handles a wide range of wheels with a capability of up to 32" diameter rims. The WB41 comes standard with a quick-release nut for securing wheels and a set of 4 cones to accommodate center holes ranging from 1.75" to 5.18". A Light Truck Adapter Kit, which includes a larger cone and a spacer for handling bigger center holes and more off-set wheels, can be purchased separately.

The Atlas® WB41 is designed to balance wheels weighing up to 150 lbs. Many balancers claim to support 150 lb wheel assemblies, but there is a significant difference between a shaft being able to support the weight and the balancer being able to accurately balance it.
