Description

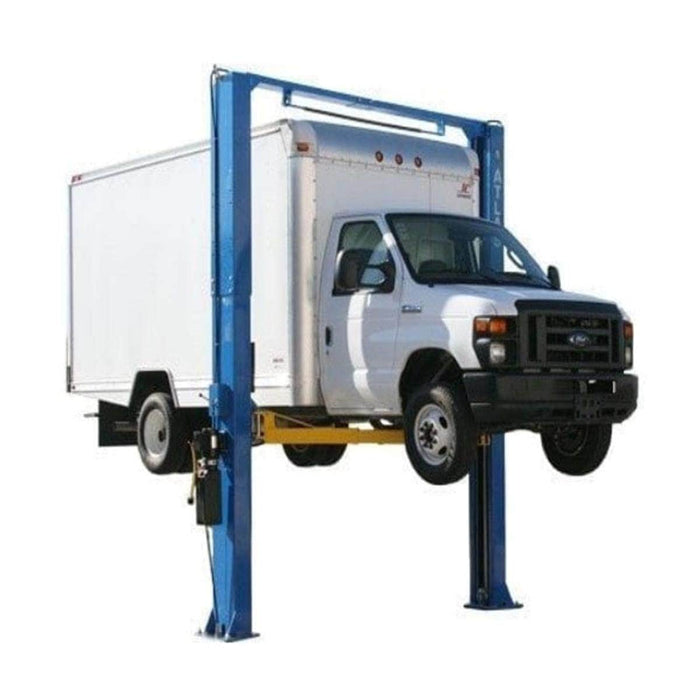

Atlas Equipment PV15PX Commercial Grade Overhead 15,000 lb. Capacity 2-Post Lift

The Atlas® PV15PX is a commercial-grade two-post lift designed to accommodate a wide range of vehicles, including long-wheelbase trucks and passenger cars. With a TRUE 15,000 lb. lifting capacity, this lift offers exceptional strength and durability for demanding shop environments.

Featuring an extra-tall and extra-wide design, the Atlas® PV15PX provides ample clearance and flexibility for large vehicles. Its symmetric arms ensure optimal weight distribution, while the padded shut-off bar prevents accidental over-extension. The direct-drive cylinders deliver smooth and efficient lifting, reducing maintenance and enhancing long-term reliability.

This lift includes a free 12-piece truck adapter set, heavy-duty mounting hardware, and a premium powder-coated finish for maximum durability. Designed for professionals, the PV15PX is a powerhouse in any commercial garage or workshop.

Features & Benefits

15,000 lb. lifting capacity for commercial and heavy-duty applications
Extra tall & extra wide design for larger vehicles
Commercial-grade construction with a powder-coated finish
Adjustable height: 165" (13' 9") or 177" (14' 9")
Special low height option: 150" (12' 6") (requires extra cables)
Symmetric arms for superior weight distribution
Automatic arm restraints for enhanced safety
Padded shut-off bar to prevent over-extension
Door guards on carriages to protect vehicles
Single-point lock release for easy operation
Direct-drive cylinders for smooth and powerful lifting
Free 12-piece truck adapter set included
Includes heavy-duty mounting hardware
5-year structural warranty, 2-year hydraulic warranty

Specifications

Capacity: 15,000 lbs.
Overall Height: 165" (13' 9") or 177" (14' 9")
Special Height Setting: 150" (12' 6") (requires extra cables)
Overall Floor Width: 150 3/4" (12' 6 3/4")
Outside Columns: 139 1/8" (11' 7 1/8")
Inside Column Width: 123 1/2" (10' 3 1/2")
Drive-Thru Width: 109 1/2" (9' 1 1/2")
Max Lift Height (w/o Adapters): 72 1/4"
Max Lift Height (w/ Adapters): 81"
Minimum Pad Height: 7 1/4"
Column Size: 7 1/2" x 14 1/2"
Base of Column: 17 1/2" x 20 1/2"
Column Steel Thickness: 6mm
Arm Steel Thickness: 6mm
Motor/Electrical Requirement: 220V / Single-phase (30A breaker required)
Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)
Shipping Weight: 2,490 lbs.
Adapter Heights: 4 Each 1.25", 2.5", 5"
Arm Hole/Adapter Peg Size: 1.5"
