Description

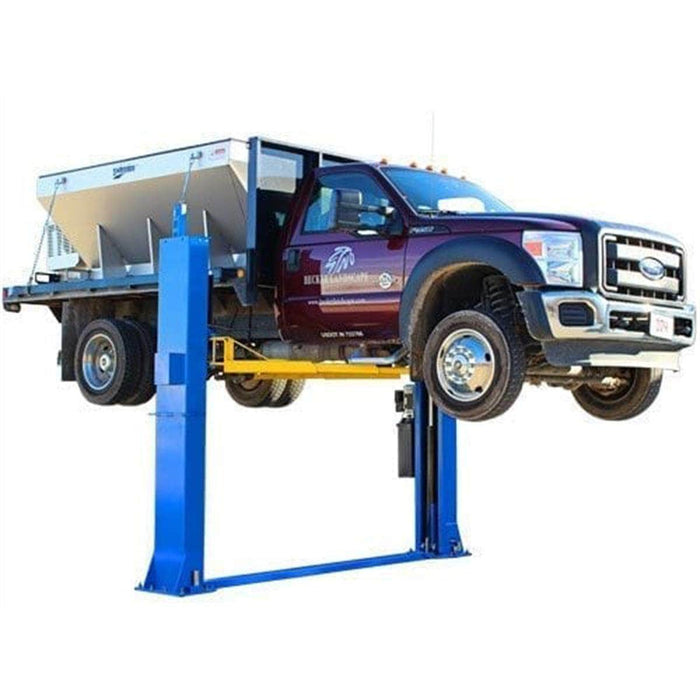

Atlas Equipment BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2-Post Lift

The Atlas® BP12000X is a commercial-grade, heavy-duty 12,000 lb. capacity 2-post baseplate lift. Designed for commercial garages with limited ceiling height, this lift provides exceptional lifting power while maintaining a compact footprint.

Featuring oversized columns and symmetric three-stage arms, the Atlas® BP12000X delivers superior support and flexibility for lifting a variety of vehicle types, including larger trucks and trailers. The adjustable width setting allows for better accommodation of wider vehicles while making it easier to drive between the lift columns.

This lift includes a free 12-piece truck adapter set, mounting hardware, and a high-quality powder-coated finish for maximum durability. The single-point lock release and automatic arm restraints provide added safety and ease of use.

Features & Benefits

12,000 lb. lifting capacity for commercial and heavy-duty applications
Heavy-duty baseplate, open-top design for low-ceiling environments
Adjustable width for wider trucks and trailers
Symmetric three-stage arms for enhanced reach and stability
Automatic arm restraints for added security
Single-point lock release for ease of operation
Dual hydraulic chain-over cylinders for smooth lifting
Rubber guards on carriages to protect vehicles
Durable powder-coated finish for longevity
Free 12-piece truck adapter set included
Includes heavy-duty mounting hardware
5-year structural warranty, 2-year hydraulic warranty

Specifications

Capacity: 12,000 lbs.
Overall Height: 122 1/2" (10' 2 1/2")
Overall Floor Width: 149 3/8" (12' 5 3/8") or 154 1/2” (12' 10 1/2”)
Outside Column to Outside Column: 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4”)
Maximum Lift Height (Without Adapters): 77 1/2"
Maximum Lift Height (With Adapters): 88 1/2"
Minimum Arm Height: 4"
Inside Column Width: 118 1/8” (9' 10 1/8”) or 123 1/2" (10' 3 1/2")
Drive-Thru Width: 103 5/8” (8' 7 5/8”) or 109” (9' 1”)
Column Size: 8 3/4" x 14"
Column Steel Thickness: 6mm
Base of Lift: 18 1/2" x 21 1/2"
Motor/Electrical Requirement: 220V / Single-phase (30A breaker required)
Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)
Shipping Weight: 2,130 lbs.
Adapter Heights: 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size: 1.5”
Concrete Requirement: Minimum 6" of concrete with a 3000 psi rating
